(1.21.5/03) - VAR - 933, 335933 - FRONT COUNTERWEIGHT SUPPORT - WITH HOOK, 9X45 KG

Запчасти Case IH JX95 (1.21.5/03) - VAR - 933, 335933 - FRONT COUNTERWEIGHT SUPPORT - WITH HOOK, 9X45 KG (03) - TRANSMISSION

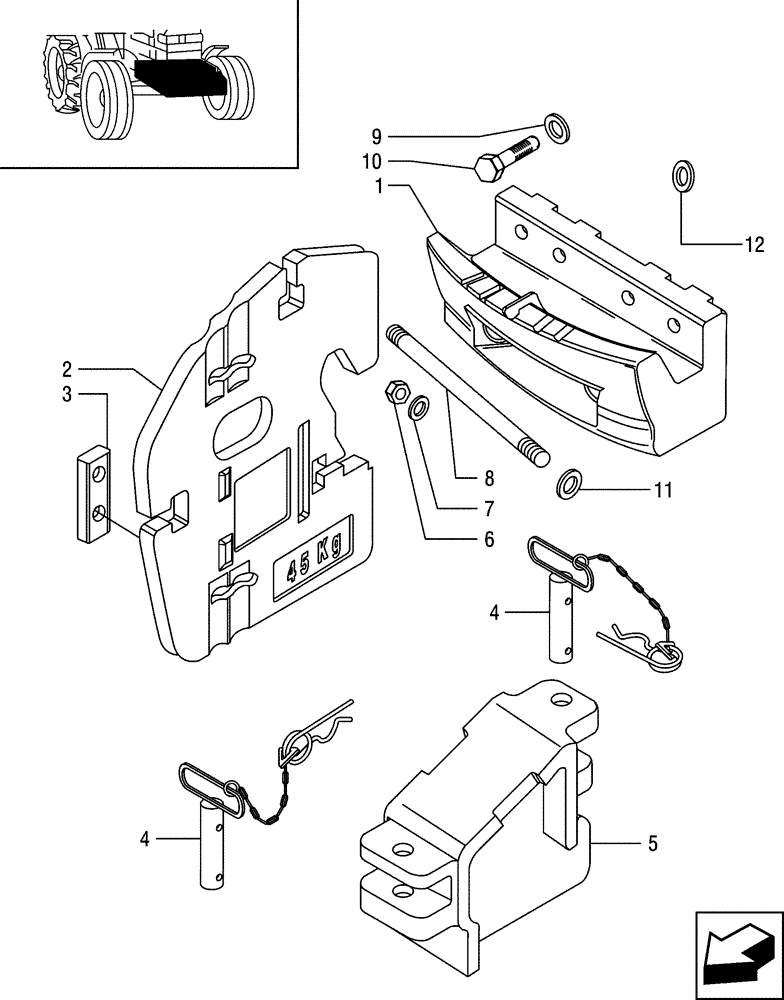

Схема запчастей Case IH JX95 - (1.21.5/03) - VAR - 933, 335933 - FRONT COUNTERWEIGHT SUPPORT - WITH HOOK, 9X45 KG (03) - TRANSMISSION
12
4
3
5
7
9
10
2
1
6
11
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5097324

WEIGHT CARRIER

1шт.

2

5091956

WEIGHT

9шт.

3

5092098

PLATE

2шт.

4

5092097

PIN

2шт.

5

5092096

WEIGHT

Front

1шт.

6

12164111

NUT,M16, Cl 8

4шт.

7

11191579

BELLEVILLE WASHER,M16 Bolt Size x 34mm OD x 3.6mm Thk

4шт.

8

5092101

THREADED ROD

2шт.

9

10520201

WASHER,16.4mm ID x 28mm OD x 3mm Thk

4шт.

10

15981221

SCREW,Hex, M16 x 1.5 x 65mm, Cl 8.8

4шт.

11

5092100

SPACER,17.5mm ID x 34mm OD x 5mm L

4шт.

12

10572179

LOCK WASHER,M16

4шт.
