Запчасти Case IH JX95 (0.05.4[02]) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS (00) - GENERAL

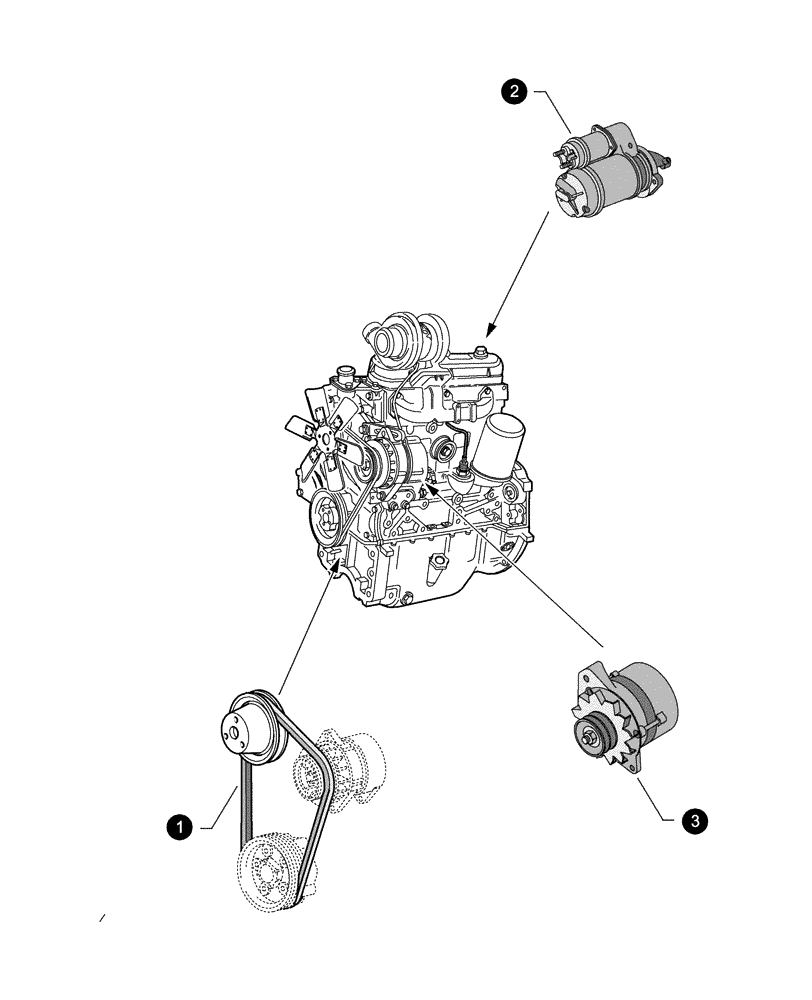

Схема запчастей Case IH JX95 - (0.05.4[02]) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS (00) - GENERAL
1
3
2

№

Артикул

Название

Примечание

Количество

1

98473705

BELT,1190.00 mm L

Main Drive

1шт.

Valid with JX60-STRADDLE MOUNT TRACTOR, JX70-STRADDLE MOUNT TRACTOR Models

1шт.

Valid with STD

1шт.

1

500369112

BELT

Main Drive, W/Alternator

1шт.

Valid with JX80-STRADDLE MOUNT TRACTOR, JX90-STRADDLE MOUNT TRACTOR, JX95-STRADDLE MOUNT TRACTOR Models

1шт.

Valid with STD

1шт.

1

5088081

V-BELT,17mm W x 1150.00mm L, 8 Ribs

Main Drive

1шт.

Valid with JX60-STRADDLE MOUNT TRACTOR, JX70-STRADDLE MOUNT TRACTOR, JX80-STRADDLE MOUNT TRACTOR, JX90-STRADDLE MOUNT TRACTOR, JX95-STRADDLE MOUNT TRACTOR Models

1шт.

Valid with STD, VAR - 747, 391102

1шт.

2

5801441814

STARTER MOTOR

On Engine

1шт.

Valid with JX80-STRADDLE MOUNT TRACTOR, JX90-STRADDLE MOUNT TRACTOR, JX95-STRADDLE MOUNT TRACTOR Models

1шт.

Valid with STD

1шт.

2

4807373

STARTER MOTOR

On Engine

1шт.

Valid with JX60-STRADDLE MOUNT TRACTOR, JX70-STRADDLE MOUNT TRACTOR Models

1шт.

Valid with STD

1шт.

2

84224935

STARTER MOTOR

On Engine

1шт.

Valid with JX60-STRADDLE MOUNT TRACTOR, JX70-STRADDLE MOUNT TRACTOR Models

1шт.

Valid with VAR - 747, 391102

1шт.

D6670 After Date 28 October 2009

1шт.

2

84273182

STARTER MOTOR,12V, 3.5kW

On Engine

1шт.

Valid with JX80-STRADDLE MOUNT TRACTOR, JX90-STRADDLE MOUNT TRACTOR, JX95-STRADDLE MOUNT TRACTOR Models

1шт.

Valid with VAR - 747, 391102

1шт.

D6670 After Date 28 October 2009

1шт.

3

500322764

ALTERNATOR,12V, 65A

On Engine

1шт.

Valid with JX60-STRADDLE MOUNT TRACTOR, JX70-STRADDLE MOUNT TRACTOR, JX80-STRADDLE MOUNT TRACTOR, JX90-STRADDLE MOUNT TRACTOR, JX95-STRADDLE MOUNT TRACTOR Models

1шт.

Valid with STD

1шт.

3

84402418

ALTERNATOR,12V, 65A, W/ Pulley

On Engine

1шт.

Valid with JX60-STRADDLE MOUNT TRACTOR, JX70-STRADDLE MOUNT TRACTOR, JX80-STRADDLE MOUNT TRACTOR, JX90-STRADDLE MOUNT TRACTOR Models

1шт.

3

84402417

ALTERNATOR,12V, 45A

On Engine

1шт.

Valid with JX60-STRADDLE MOUNT TRACTOR, JX70-STRADDLE MOUNT TRACTOR, JX80-STRADDLE MOUNT TRACTOR, JX90-STRADDLE MOUNT TRACTOR Models

1шт.

Valid with VAR - 747, 391102

1шт.

D7014 After Date 10 December 2010

1шт.

3

84296707

ALTERNATOR,12V, 65A, W/ Pulley

On Engine

1шт.

Valid with JX95-STRADDLE MOUNT TRACTOR Models

1шт.

Valid with VAR - 747, 391102

1шт.

D7014 After Date 10 December 2010

1шт.

Выбрано товаров: 36
