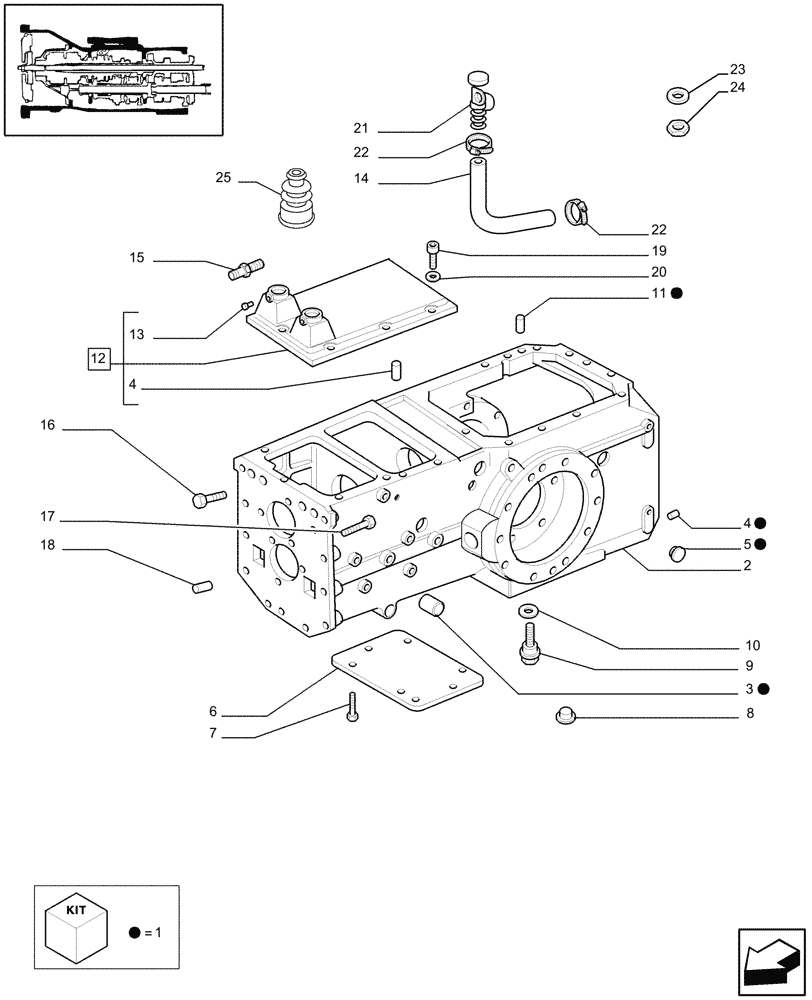

Запчасти Case IH JX95 (1.21.0[02]) - TRACTOR BODY - CAPS AND COVERS (03) - TRANSMISSION

1

5089958

HOUSING

1шт.

2

5089401

HOUSING

1шт.

3

5118942

BUSHING,30.05mm ID x 34mm OD x 30mm L

2шт.

4

10839810

DOWEL,12mm OD x 18mm L

2шт.

5

10159004

PLUG,M25, Tapered

2шт.

6

5195411

COVER

1шт.

7

15540421

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

6шт.

8

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

3шт.

9

5118991

PLUG,M22 x 1.5

2шт.

10

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

3шт.

11

5119529

DOWEL,15mm OD x 22mm L

2шт.

12

5096875

COVER

1шт.

12

84299907

COVER

1шт.

With Reverse Speed Alarm for 12+4 Trasmission, VAR.409

1шт.

13

5125535

DOWEL

4шт.

14

84237323

LARGE HOSE

HOSE,LARGE 430MM

1шт.

15

5157395

FITTING

1шт.

16

15540621

SCREW,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

22шт.

17

15540721

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

2шт.

18

10839910

DOWEL,15mm OD x 20mm L

2шт.

19

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

8шт.

20

11197779

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

6шт.

21

5153270

BREATHER

1шт.

22

5085797

CLAMP

2шт.

23

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

24

15896211

NUT,M6, Cl 8

1шт.

25

4999009

BOOT

1шт.
