Главная
/
Справочники
/
Case IH
/
Тракторы
/
Общего назначения
/
JX
/
(JX95) - STRADDLE MOUNT TRACTOR (1/06-12/09)
/
(00) - GENERAL
/

(0.05.4[01]) - MAINTENANCE PARTS - FILTERS

Запчасти Case IH JX95 (0.05.4[01]) - MAINTENANCE PARTS - FILTERS (00) - GENERAL

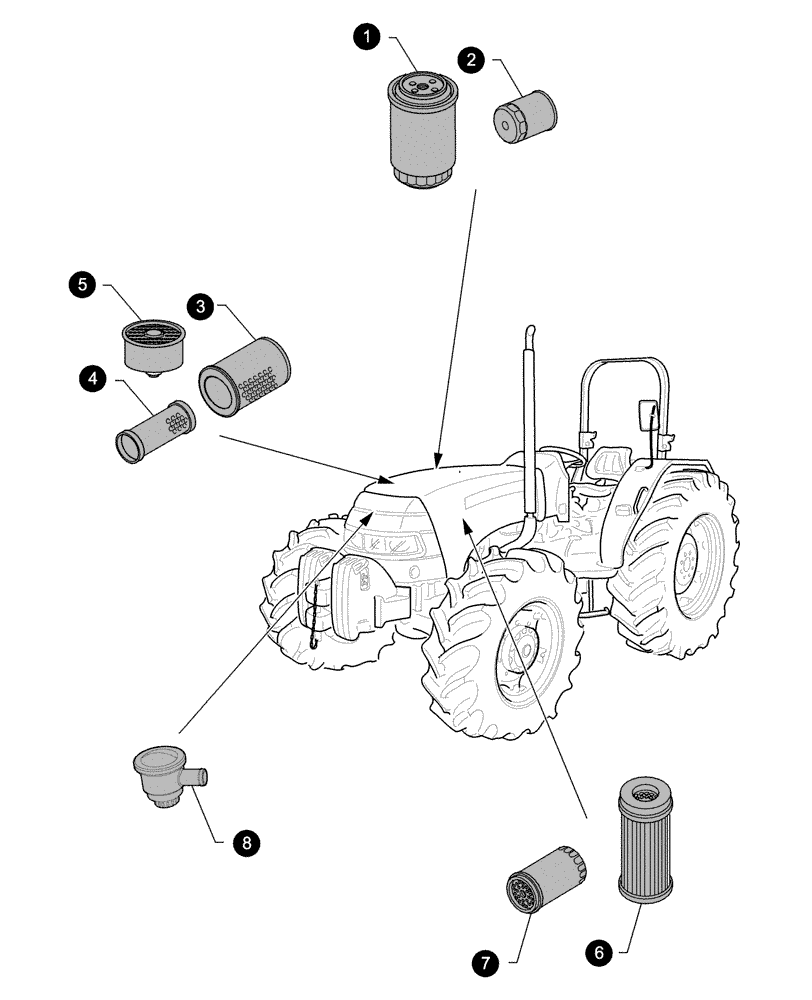

Схема запчастей Case IH JX95 - (0.05.4[01]) - MAINTENANCE PARTS - FILTERS (00) - GENERAL
4
3
8
1
5
2
6
7

№

Артикул

Название

Примечание

Количество

1

5088468

FUEL FILTER

, Every 600 hours

1шт.

Valid with JX60-STRADDLE MOUNT TRACTOR, JX70-STRADDLE MOUNT TRACTOR, JX80-STRADDLE MOUNT TRACTOR, JX90-STRADDLE MOUNT TRACTOR, JX95-STRADDLE MOUNT TRACTOR Models

1шт.

Valid with STD

1шт.

2

5081170

ENGINE OIL FILTER

, Every 600 hours

1шт.

Valid with JX60-STRADDLE MOUNT TRACTOR, JX70-STRADDLE MOUNT TRACTOR, JX80-STRADDLE MOUNT TRACTOR, JX90-STRADDLE MOUNT TRACTOR, JX95-STRADDLE MOUNT TRACTOR Models

1шт.

3

87704249

AIR FILTER

Primary Cartridge, Every 300 hours

1шт.

Valid with JX60-STRADDLE MOUNT TRACTOR, JX80-STRADDLE MOUNT TRACTOR Models

1шт.

3

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

Primary, Dry, Every 300 hours

1шт.

Valid with JX70-STRADDLE MOUNT TRACTOR, JX90-STRADDLE MOUNT TRACTOR, JX95-STRADDLE MOUNT TRACTOR Models

1шт.

4

86982523

FILTER,ELEMENT

Safety, Every 300 hours

1шт.

Valid with JX60-STRADDLE MOUNT TRACTOR, JX80-STRADDLE MOUNT TRACTOR Models

1шт.

4

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

Inner Cartridge, Every 300 hours

1шт.

Valid with JX70-STRADDLE MOUNT TRACTOR, JX90-STRADDLE MOUNT TRACTOR, JX95-STRADDLE MOUNT TRACTOR Models

1шт.

5

4987747

AIR FILTER

, Every 300 hours

1шт.

Valid with JX60-STRADDLE MOUNT TRACTOR, JX80-STRADDLE MOUNT TRACTOR Models

1шт.

6

1909143

FILTER

Steering direction servocontrol, Every 600 hours

1шт.

Valid with JX60-STRADDLE MOUNT TRACTOR, JX70-STRADDLE MOUNT TRACTOR, JX80-STRADDLE MOUNT TRACTOR, JX90-STRADDLE MOUNT TRACTOR, JX95-STRADDLE MOUNT TRACTOR Models

1шт.

7

47425202

HYDRAULIC OIL FILTER,109.00mm OD

Spin-On, Every 600 hours

1шт.

Valid with JX60-STRADDLE MOUNT TRACTOR, JX70-STRADDLE MOUNT TRACTOR, JX80-STRADDLE MOUNT TRACTOR, JX90-STRADDLE MOUNT TRACTOR, JX95-STRADDLE MOUNT TRACTOR Models

1шт.

8

504058466

BREATHER

Engine, Every 600 hours

1шт.

Valid with JX70-STRADDLE MOUNT TRACTOR, JX90-STRADDLE MOUNT TRACTOR, JX95-STRADDLE MOUNT TRACTOR Models

1шт.

Valid with STD

1шт.

8

84599786

BREATHER

Blow-By Unit, Every 600 hours

1шт.

Valid with JX70-STRADDLE MOUNT TRACTOR, JX90-STRADDLE MOUNT TRACTOR, JX95-STRADDLE MOUNT TRACTOR Models

1шт.

Valid with VAR - 747, 391102

1шт.

Выбрано товаров: 25
