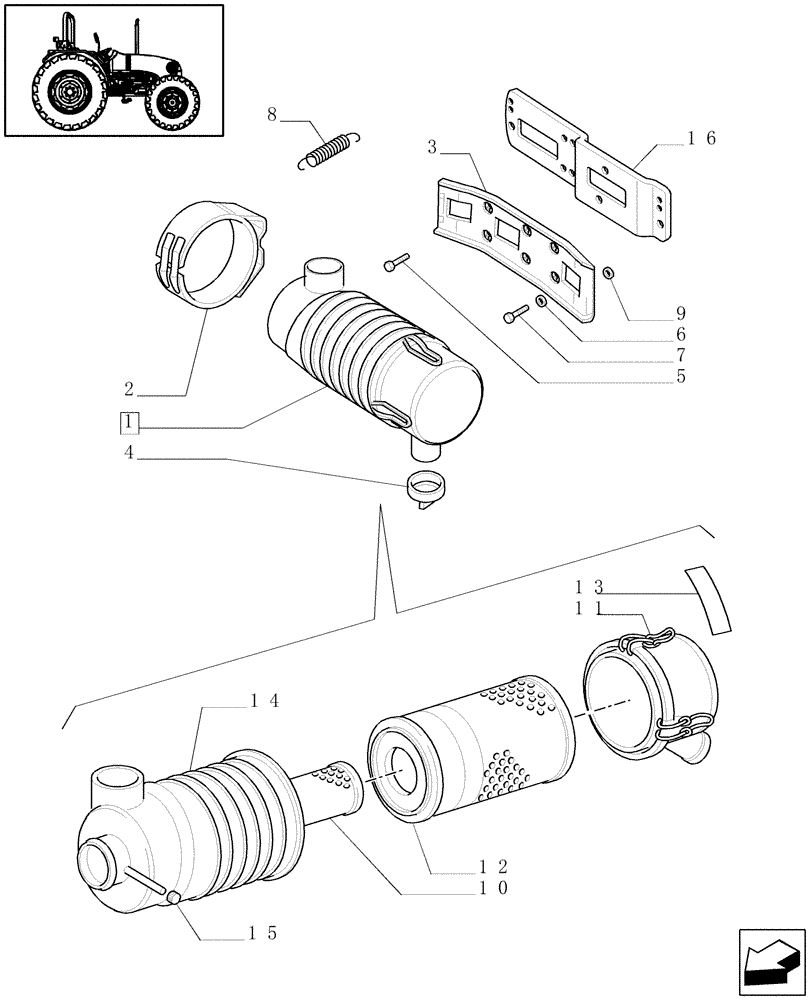

Запчасти Case IH JX95 (1.19.1/02[04]) - VAR - 199 - WET AIR CLEANER (02) - ENGINE EQUIPMENT

1

5097072

AIR CLEANER

1шт.

2

87724052

COLLAR

1шт.

3

5097042

SUPPORT

1шт.

4

5080441

PROTECTION CAP

1шт.

5

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

6

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

2шт.

7

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

4шт.

8

5090988

SPRING,12mm OD x 50mm

2шт.

9

12644401

WASHER,6.15mm ID x 15mm OD x 1mm Thk

2шт.

9

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

10

5080755

ELEMENT

1шт.

11

5080440

COVER

1шт.

12

5080756

ELEMENT

1шт.

13

5080757

DECAL

1шт.

14

5080439

BODY

1шт.

15

5080443

PLUG

1шт.

16

87724050

SUPPORT

1шт.

16

5098170

SUPPORT

1шт.
