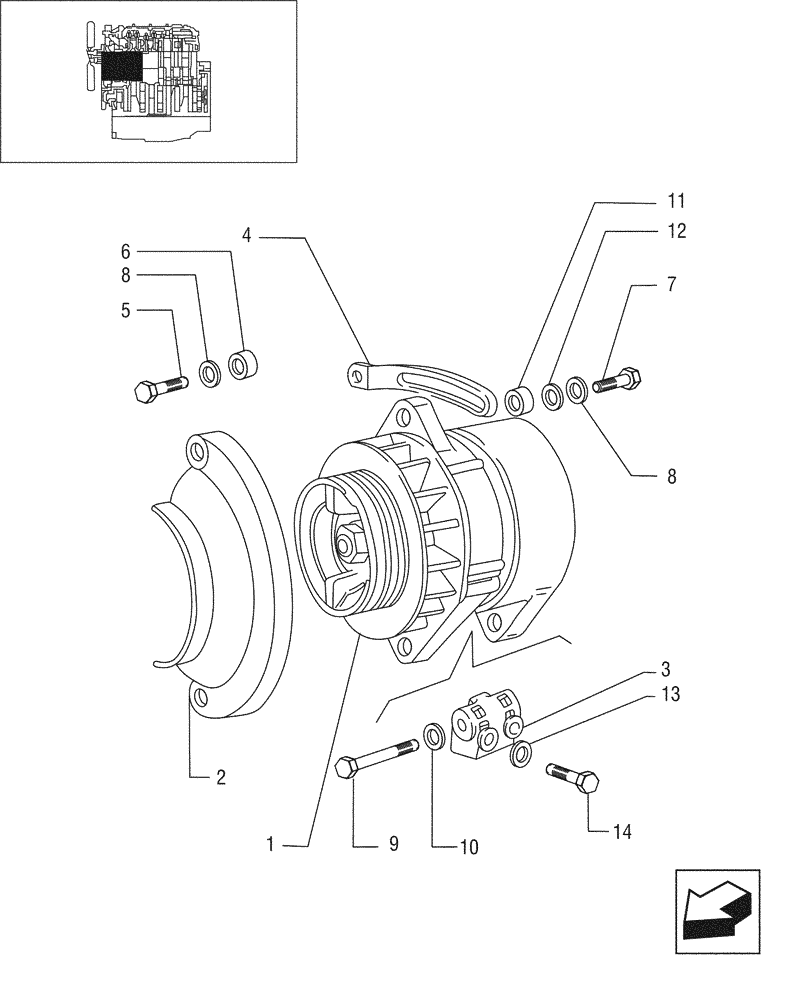

Запчасти Case IH JX95 (0.40.0/02) - VAR - 747, 391102 - TTF ENGINE TIER 2 - ALTERNATOR MOUNTING (01) - ENGINE

1

84296695

ALTERNATOR

L/CAB, JX60, JX70, JX80, JX90

1шт.

1

84296690

ALTERNATOR

W/CAB, JX60, JX70, JX80, JX90, Serial Range: -C7014

1шт.

1

84402416

ALTERNATOR

W/CAB, JX60, JX70, JX80, JX90, Start Serial: D7014

1шт.

1

84296707

ALTERNATOR,12V, 65A, W/ Pulley

JX95

1шт.

84296707R

REMAN-ALTERNATOR

JX95 TIER 2 (1/06-)

1шт.

84296707C

CORE-ALTERNATOR

Return number

1шт.

2

5095554

GUARD

1шт.

3

5088054

SUPPORT

1шт.

4

4600129

BELT TENSIONER

1шт.

5

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

6

5085904

SPACER,10.3mm ID x 20mm OD x 9mm L

1шт.

7

84203262

BOLT,M10 x 1.25 x 55mm

M10x1.25x55

1шт.

7

15888721

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

2шт.

8

11198379

SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk

2шт.

9

15541921

BOLT,Hex, M12 x 1.25 x 130mm, Cl 8.8

1шт.

10

11198679

BELLEVILLE WASHER,13mm ID x 24mm OD x 0.6mm Thk

1шт.

11

5085903

BUSHING

1шт.

12

12646824

WASHER,10.2mm ID x 25mm OD x 2mm Thk

1шт.

13

11198179

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

2шт.

14

16044221

SCREW,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.
