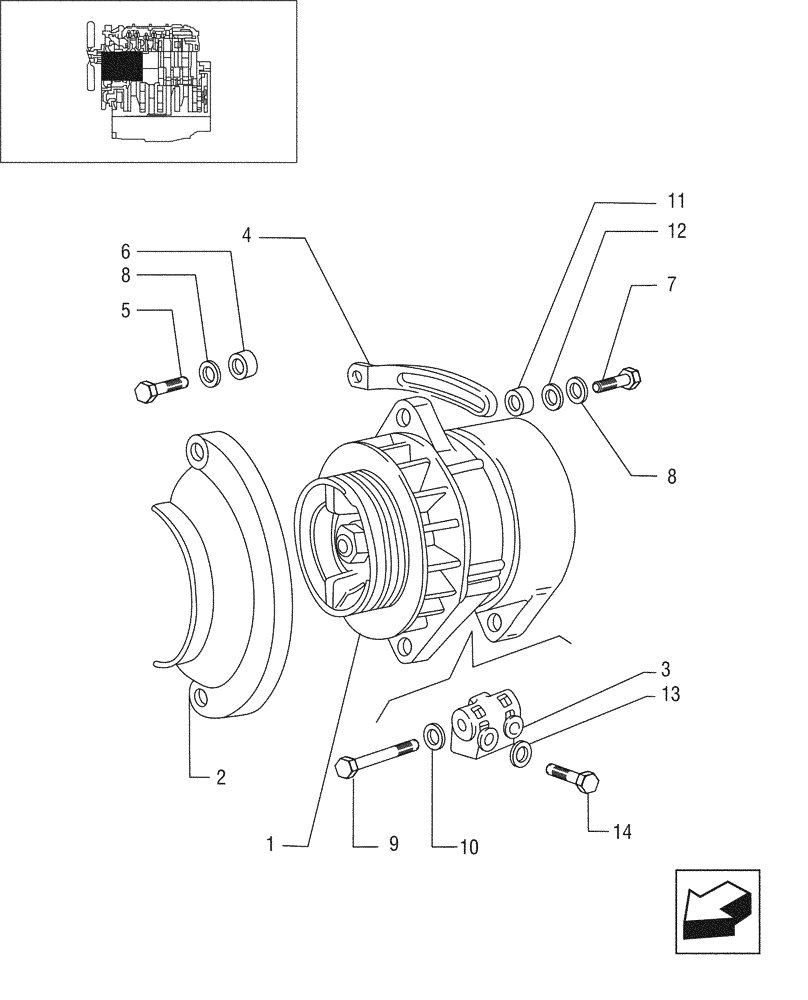

Запчасти Case IH JX95 (0.40.0/01) - ALTERNATOR - TIER 1 ENGINE (01) - ENGINE

1

5085901

ALTERNATOR

1шт.

2

5095554

GUARD

1шт.

3

5088054

SUPPORT

1шт.

4

4600129

BELT TENSIONER

1шт.

5

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

6

5085904

SPACER,10.3mm ID x 20mm OD x 9mm L

1шт.

7

84203262

BOLT,M10 x 1.25 x 55mm

M10x1.25x55

1шт.

7

15888721

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

2шт.

8

11198379

SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk

2шт.

9

15541921

BOLT,Hex, M12 x 1.25 x 130mm, Cl 8.8

1шт.

10

11198679

BELLEVILLE WASHER,13mm ID x 24mm OD x 0.6mm Thk

1шт.

11

5085903

BUSHING

1шт.

12

12646824

WASHER,10.2mm ID x 25mm OD x 2mm Thk

1шт.

13

11198179

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

2шт.

14

16044221

SCREW,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.
