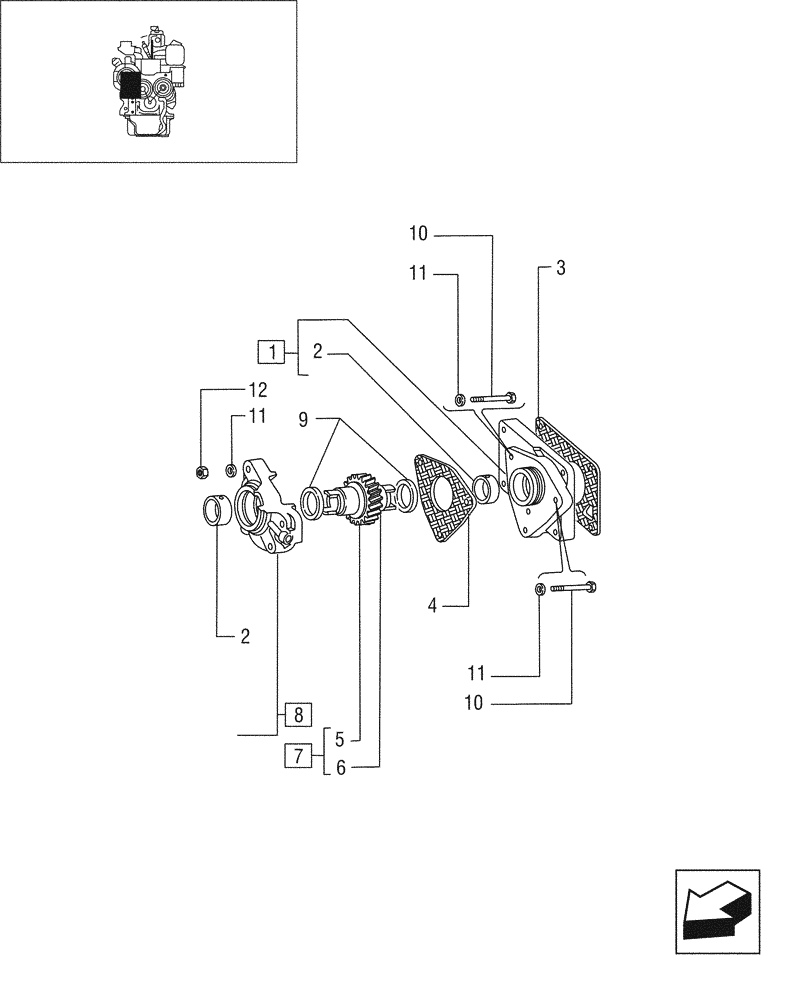

Запчасти Case IH JX95 (0.35.0/01) - BELT PULLEY DRIVE & COVER - TIER 1 ENGINE (01) - ENGINE

1

4755239

SUPPORT

1шт.

2

5088053

BUSHING

2шт.

3

500378759

SEAL

1шт.

3

500378759

SEAL

JX95

1шт.

4

4851004

GASKET,0.8mm Thk

1шт.

5

4769592

GEAR

, Serial Range: -C7003

1шт.

5

84420568

GEAR

JX60, JX70, JX80, JX90, Start Serial: D7003

1шт.

5

98445957

GEAR

JX95, Serial Range: -C7003

1шт.

5

84420573

GEAR,25 Teeth

JX95, Start Serial: D7003

1шт.

6

4769591

SHAFT

1шт.

7

4769590

SHAFT

29 teeth, Serial Range: -C7003

1шт.

7

84420568

GEAR

JX60, JX70, JX80, JX90, Start Serial: D7003

1шт.

7

84420573

GEAR,25 Teeth

25 teeth, if needed, Serial Range: -C7003

1шт.

7

84420573

GEAR,25 Teeth

JX95, Start Serial: D7003

1шт.

8

4771242

SUPPORT

1шт.

9

4667452

WASHER,37.1mm ID x 55mm OD x 1.5mm Thk

2шт.

10

16044521

SCREW,Hex, M8 x 65mm, Cl 8.8

2шт.

11

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

12

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.
