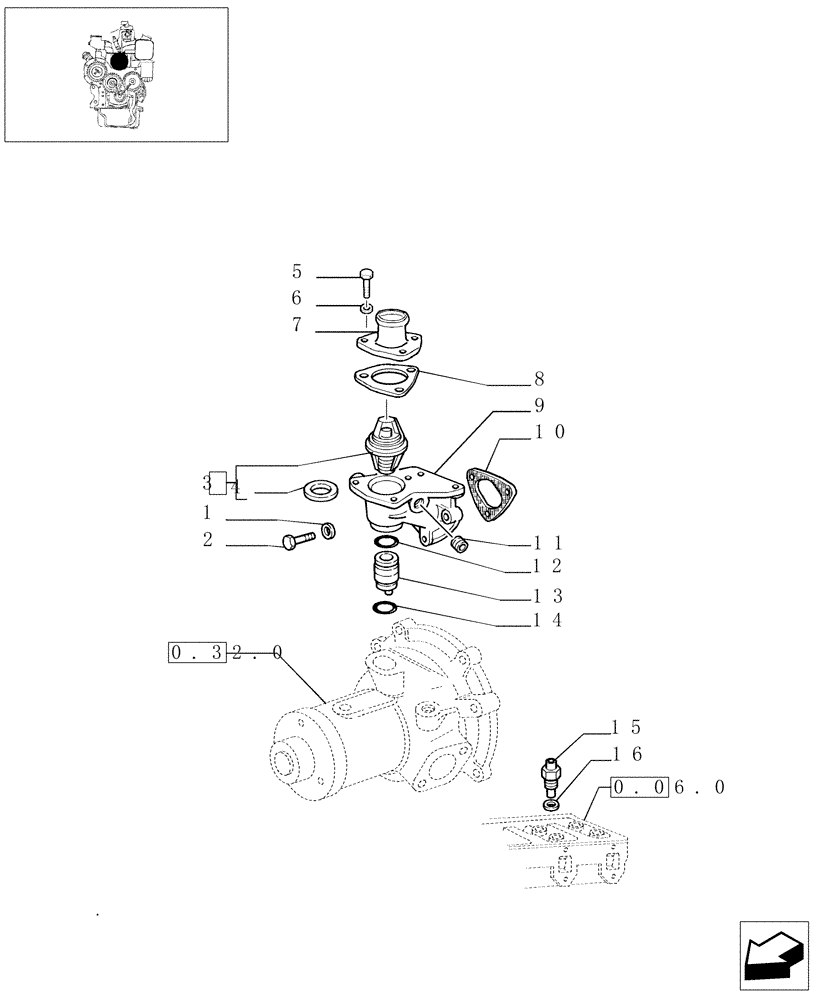

Запчасти Case IH JX95 (0.32.6/01) - THERMOSTAT AND RELATED PARTS - TIER 2 ENGINE (01) - ENGINE

1

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

3шт.

2

11234724

BOLT,Hex, M10 x 1.25 x 45, 8.8

2шт.

2

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

3

98463637

THERMOSTAT

- ASSY

1шт.

4

7303173

GASKET,4.3mm Thk

1шт.

5

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

6

11194079

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

3шт.

7

4661543

HOUSING,Thermostat

1шт.

8

98482590

GASKET

1шт.

9

4823619

BODY

1шт.

10

98400784

GASKET,0.5mm Thk

1шт.

11

500378047

PLUG

1шт.

12

14463281

O-RING,0.984" ID x 0.139" Width

1шт.

13

98415712

HYD CONNECTOR

1шт.

14

5135740

O-RING,0.924" ID x 1.13" OD x 0.103"

1шт.

15

4171667

SENSOR

Coolant

1шт.

16

4858609

WASHER,Brass

D=16 x 20 mm

1шт.
