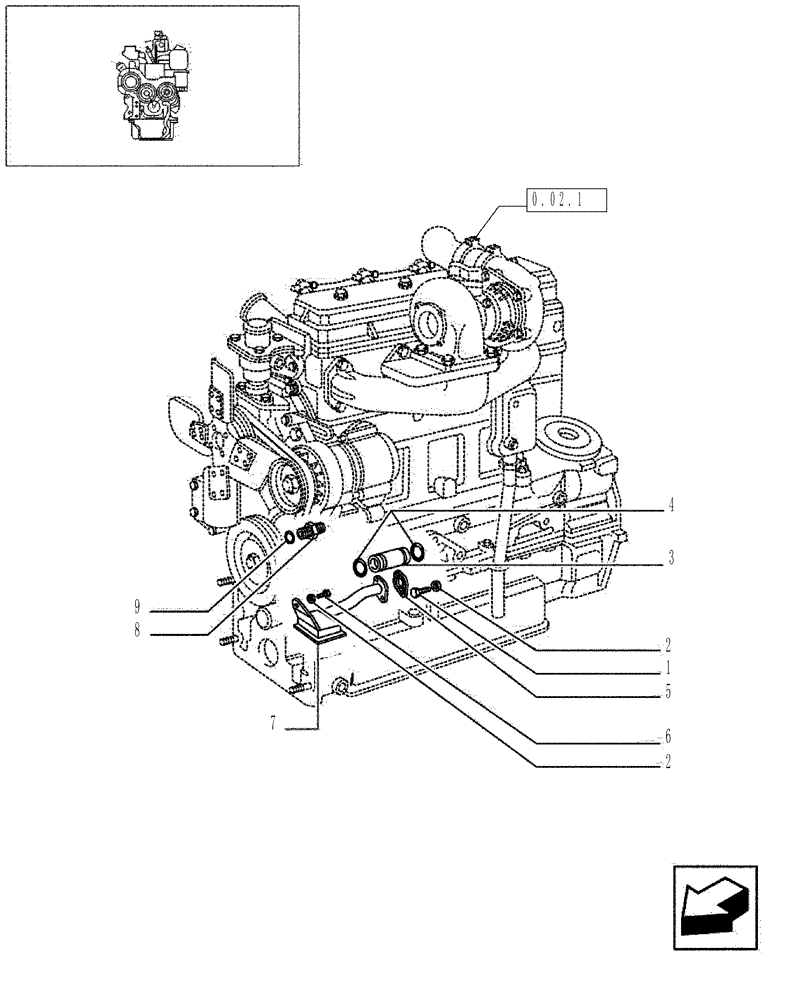

Запчасти Case IH JX95 (0.30.5/05[04]) - VAR - 747, 391102 - TTF ENGINE TIER 2 - PIPES AND OIL LEVEL INDICATOR (01) - ENGINE

1

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

2

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

3

98415136

RIGID TUBE

1шт.

4

14463281

O-RING,0.984" ID x 0.139" Width

2шт.

5

5096069

GASKET,0.8mm Thk

1шт.

6

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

7

5096074

ENGINE OIL FILTER

1шт.

8

4785501

HYD CONNECTOR,M10 x 1.25

1шт.

9

561293

O-RING,12mm OD x 2.5mm Width

1шт.
