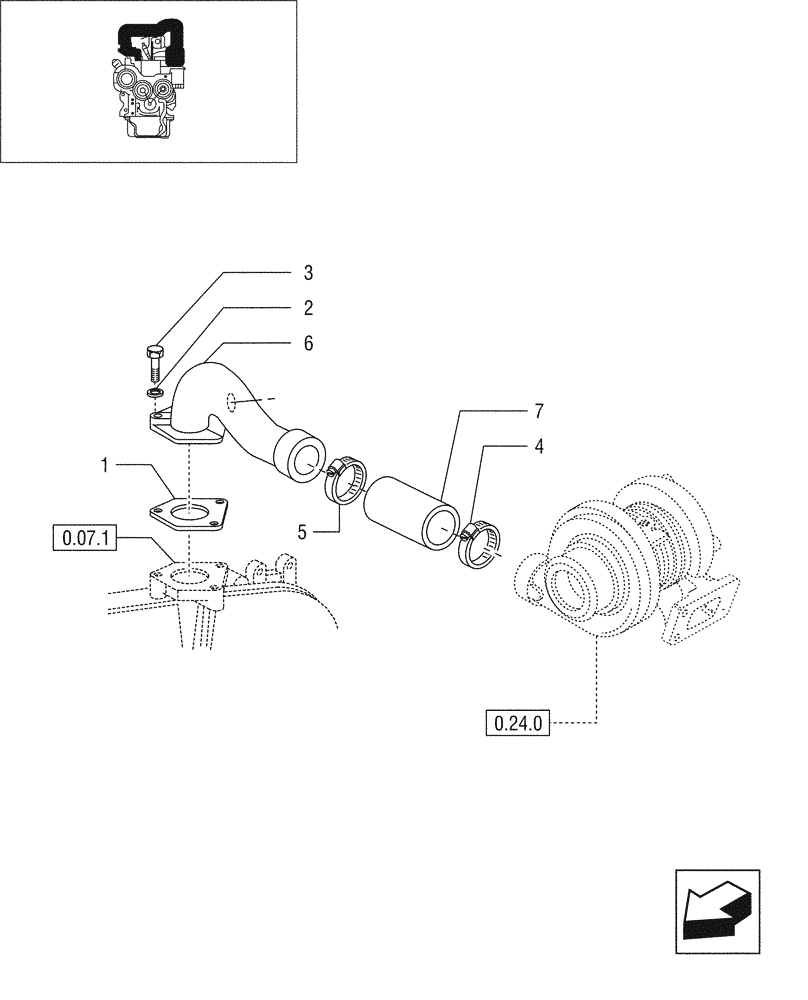

Запчасти Case IH JX95 (0.24.2/01) - VAR - 747, 391102 - TTF ENGINE TIER 2 - TURBOCHARGING LINES (01) - ENGINE

1

98418533

GASKET,0.8mm Thk

1шт.

2

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

3шт.

3

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

4

5085780

CLAMP

44-64

1шт.

5

5095343

CLAMP

38-58

1шт.

6

5096546

PIPE

1шт.

7

5097293

HOSE

1шт.
