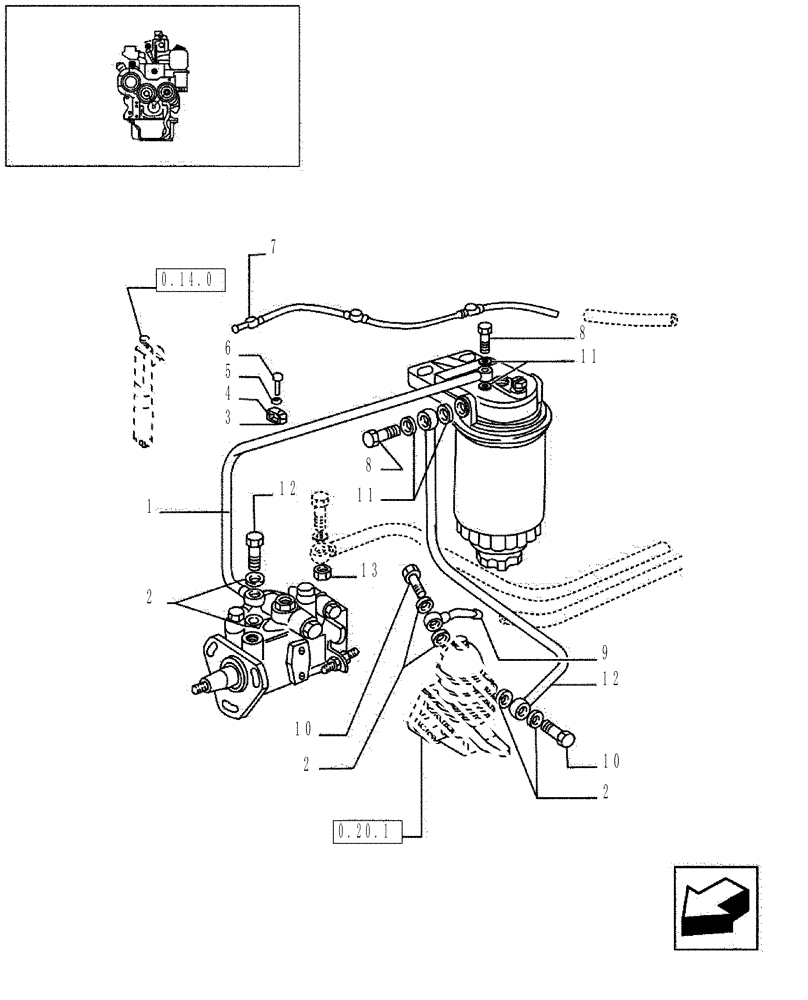

Запчасти Case IH JX95 (0.20.3/05) - VAR - 747, 391102 - TTF ENGINE TIER 2 - FUEL LINES (01) - ENGINE

1

5096842

TUBE

JX60-JX70

1шт.

1

5096844

PIPE

JX80-JX90-JX95

1шт.

2

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

3

4002890

CLAMP

1шт.

4

607942

CLAMP

1шт.

5

11197779

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

6

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

1шт.

7

4788075

RIGID TUBE

JX60-JX70

1шт.

7

4777224

RETURN PIPE

JX80-JX90

1шт.

7

5097182

INJECTION PIPE

JX95

1шт.

8

4864083

BANJO BOLT,M14 x 1.5 x 30mm

M14 x 1.5 x 30

2шт.

9

98416591

FITTING

Banjo

1шт.

10

4864082

BANJO BOLT

M12 x 1.5 x 25

4шт.

11

98474308

SEALING WASHER,16mm ID x 22mm OD x 1.5mm Thk

4шт.

12

5096840

PIPE

JX95

1шт.

12

5096839

TUBE

JX60-JX70-JC80-JX90

1шт.

13

5097178

SUPPORT

JX95

2шт.
