(0.20.0/02) - FUEL FILTER - TIER 1 ENGINE

Запчасти Case IH JX95 (0.20.0/02) - FUEL FILTER - TIER 1 ENGINE (01) - ENGINE

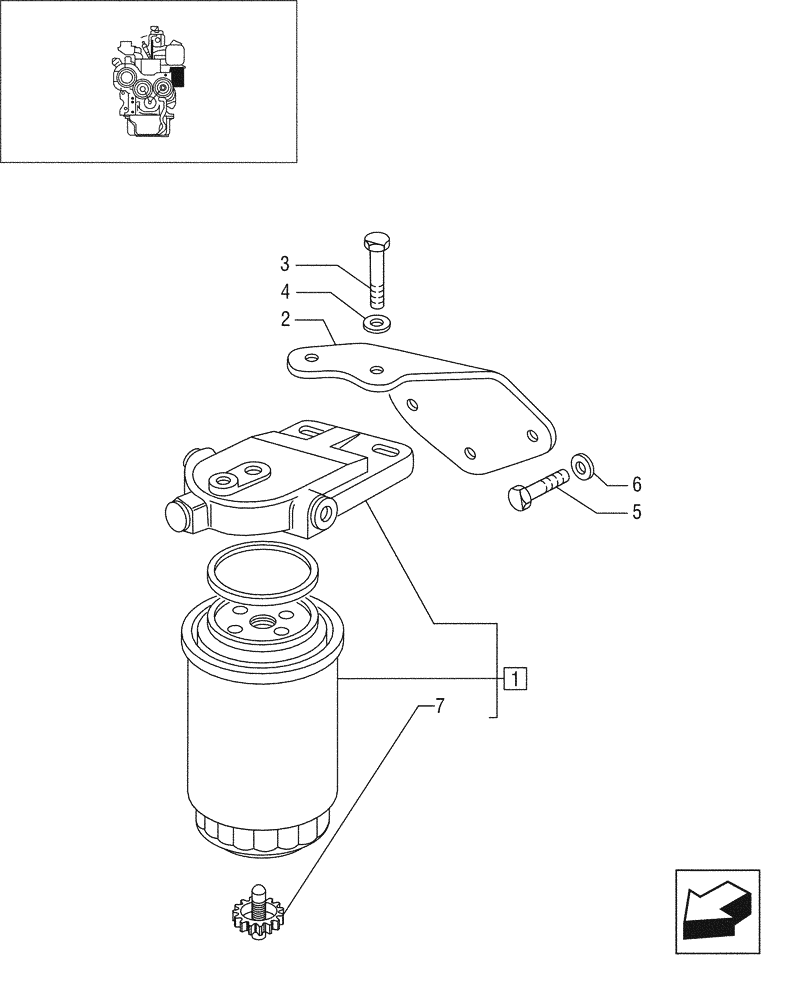

Схема запчастей Case IH JX95 - (0.20.0/02) - FUEL FILTER - TIER 1 ENGINE (01) - ENGINE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5088468

FUEL FILTER

, Years: -31-MAR-09

1шт.

1

84214564

FUEL FILTER

, Start Year: 01-APR-09

1шт.

2

504047457

BRACKET

1шт.

3

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

4

12626001

WASHER,10.2mm ID x 22mm OD x 3mm Thk

2шт.

5

15970621

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

6

11198379

SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk

3шт.

7

7984634

SCREW

1шт.
