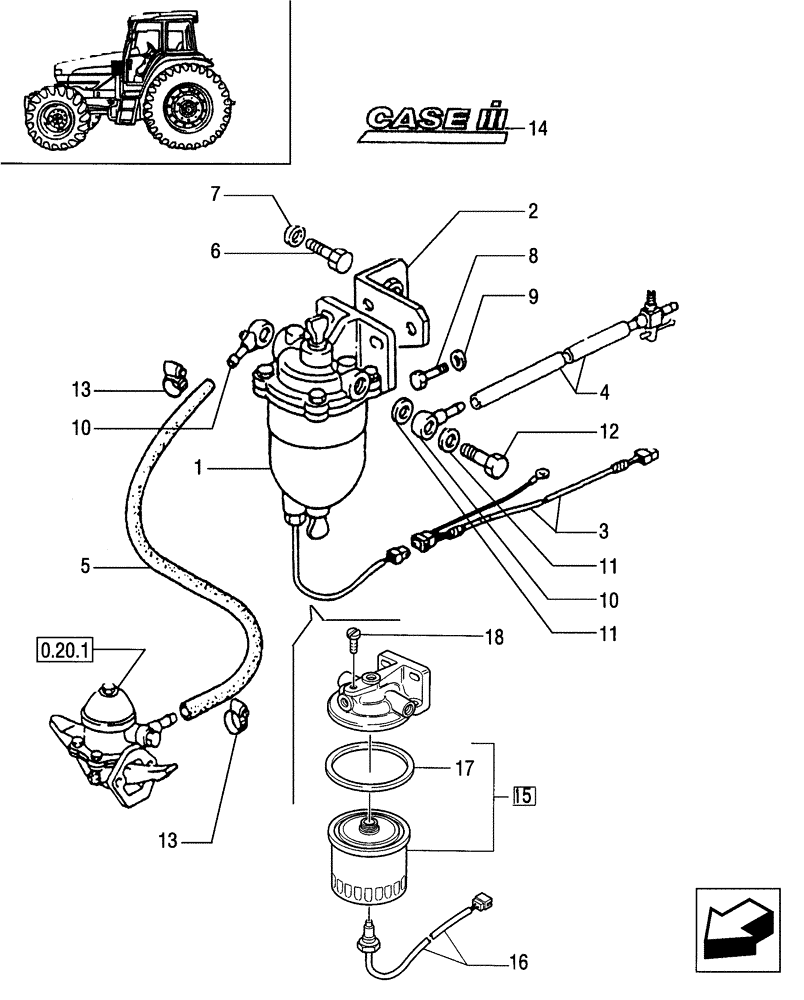

Запчасти Case IH JX95 (0.20.0/01) - VAR - 130, 334296 - FUEL FILTER - TIER 2 ENGINE (01) - ENGINE

1

84349380

FUEL FILTER

1шт.

2

5139260

BRACKET

1шт.

3

5182155

ELECTRIC CABLE

1шт.

4

5092343

HOSE

1шт.

5

5092344

FUEL HOSE,7.00 mm ID x 980.00 mm

1шт.

6

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

7

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

8

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

9

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

10

5150924

HYD CONNECTOR

2шт.

11

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

4шт.

12

10184311

BANJO BOLT,M14 x 1.5 x 27mm

2шт.

13

10186590

CLAMP,11mm - 13mm

2шт.

14

5093062

DECAL

Logo

1шт.

15

47128205

FUEL FILTER

1шт.

16

9971771

INDICATOR

1шт.

17

9962851

SEAL

1шт.

18

9962853

SCREW

1шт.
