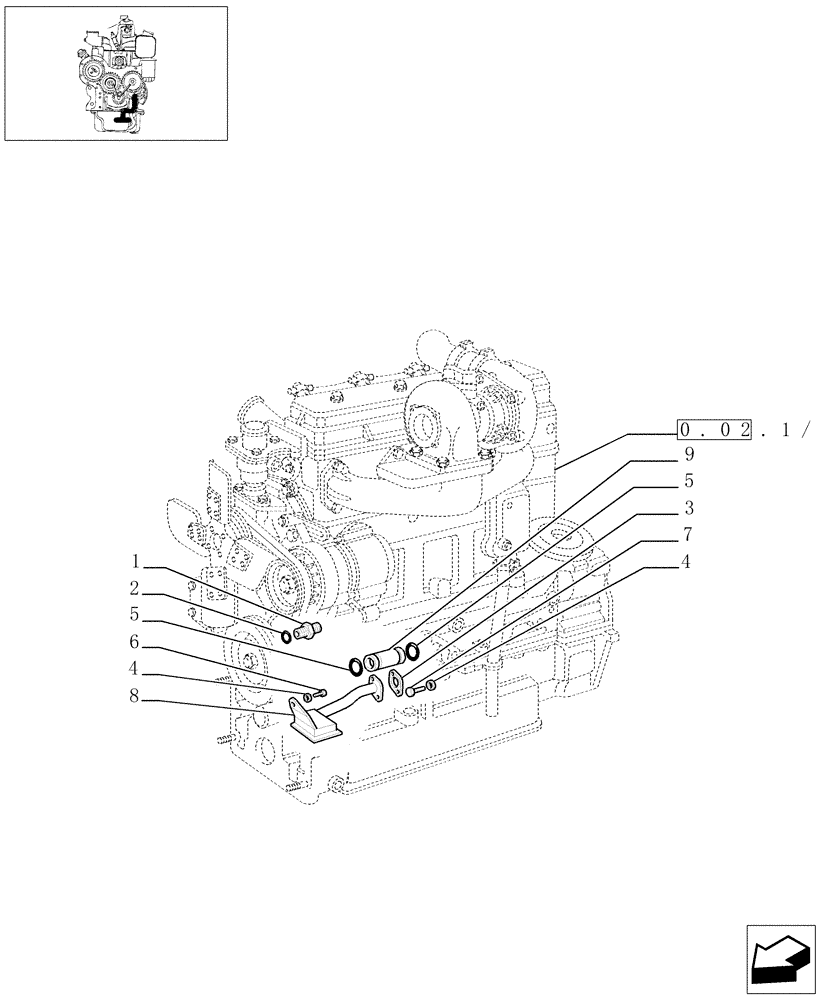

Запчасти Case IH JX95 (0.30.5/02) - PIPING ENGINE OIL (01) - ENGINE

1

561293

O-RING,12mm OD x 2.5mm Width

1шт.

2

4785501

HYD CONNECTOR,M10 x 1.25

M10 x 1.25

1шт.

3

4852561

GASKET,0.8mm Thk

1шт.

4

17089471

WASHER

D=16 x 8 mm, Thk=1.4 mm

3шт.

5

14463281

O-RING,0.984" ID x 0.139" Width

D=24.9 mm, Thk=3.5 mm

2шт.

6

16605424

SCREW,Hex, M8

Cap, HH, CL 8.8, M8 x 1.25 x 16 mm

1шт.

7

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

8

504120190

TUBE

1шт.

9

98415136

RIGID TUBE

1шт.
