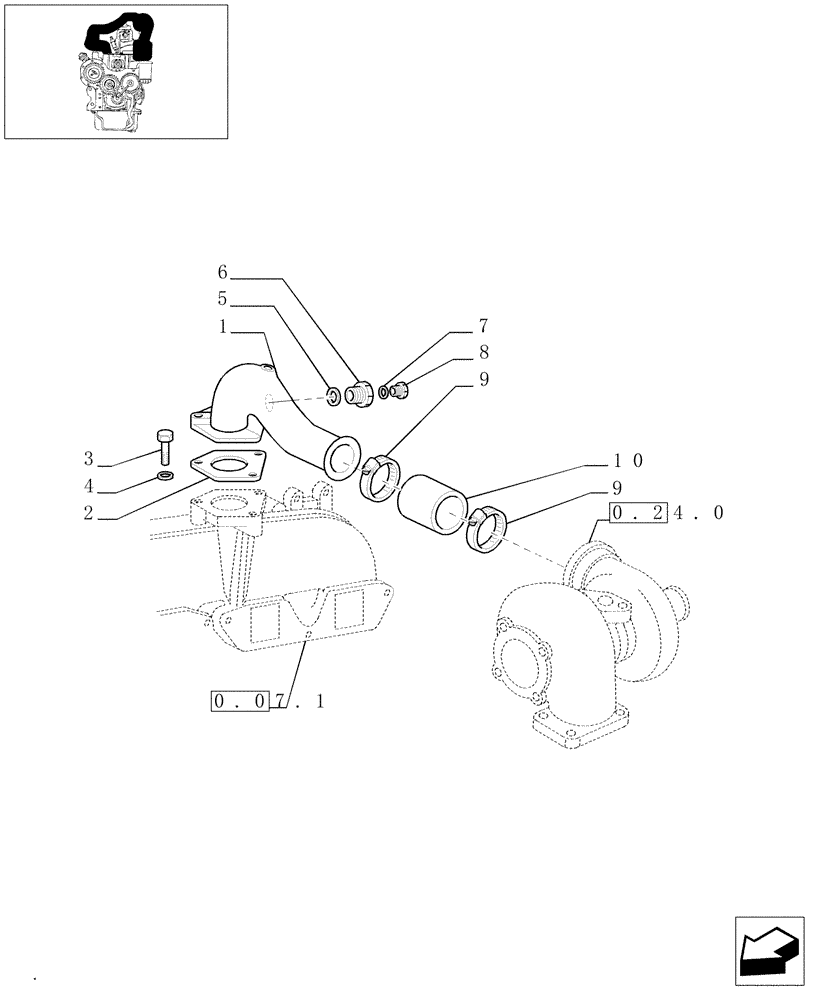

Запчасти Case IH JX95 (0.24.1) - LINES (BEFORE S/N 13286) (01) - ENGINE

1

4760064

RIGID TUBE

1шт.

2

98418533

GASKET,0.8mm Thk

1шт.

3

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

2шт.

3

15971931

BOLT,Hex, M10 x 1.25 x 105, 10.9

1шт.

4

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

3шт.

5

10279560

SEALING WASHER,22.3mm ID x 28mm OD x 1mm Thk

1шт.

6

4663081

HYD CONNECTOR,1/2" x M10 x 1

1шт.

7

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

1шт.

8

16992111

PLUG

1шт.

9

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

2шт.

10

98448211

HOSE

1шт.
