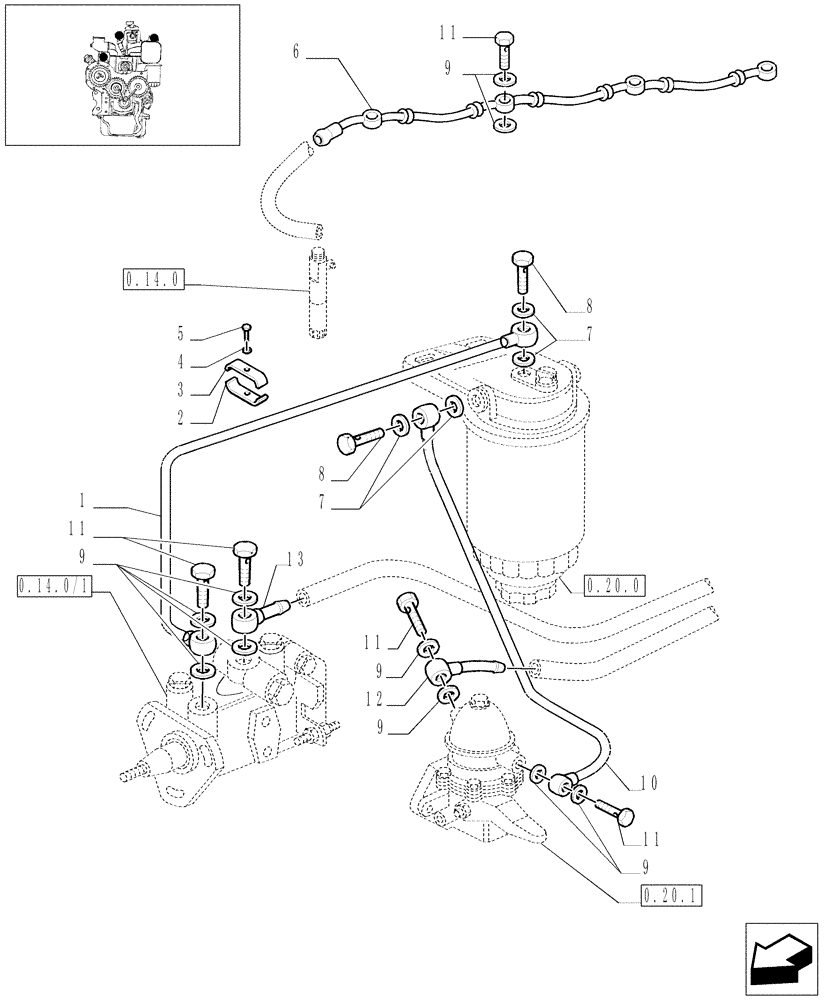

Запчасти Case IH JX95 (0.20.3/01) - FUEL LINES (BEFORE S/N 13286) (01) - ENGINE

1

98465567

RIGID TUBE

JX75-JX85

1шт.

1

99449110

RIGID TUBE

JX95

1шт.

2

4002890

CLAMP

1шт.

3

607942

CLAMP

1шт.

4

17088471

LOCK WASHER

6 x 12 x 1.2

1шт.

5

16603624

SCREW,Hex, M6 x 16mm, Cl 8.8

Cap, HH, CL 8.8, M6 x 1 x 16

1шт.

6

4777224

RETURN PIPE

1шт.

7

98474308

SEALING WASHER,16mm ID x 22mm OD x 1.5mm Thk

D=14 x 22 x 1.5

4шт.

8

4864083

BANJO BOLT,M14 x 1.5 x 30mm

M14 x 1.5 x 30

2шт.

9

98474306

SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk

12 x 20 x 1.9

10шт.

10

98465899

RIGID TUBE

JX75-JX85

1шт.

10

99449109

RIGID TUBE

JX95

1шт.

11

4864082

BANJO BOLT

M12 x 1.5 x 25

5шт.

12

98417685

SWIVEL CONNECTION

Banjo

1шт.

13

98416591

FITTING

Banjo

1шт.
