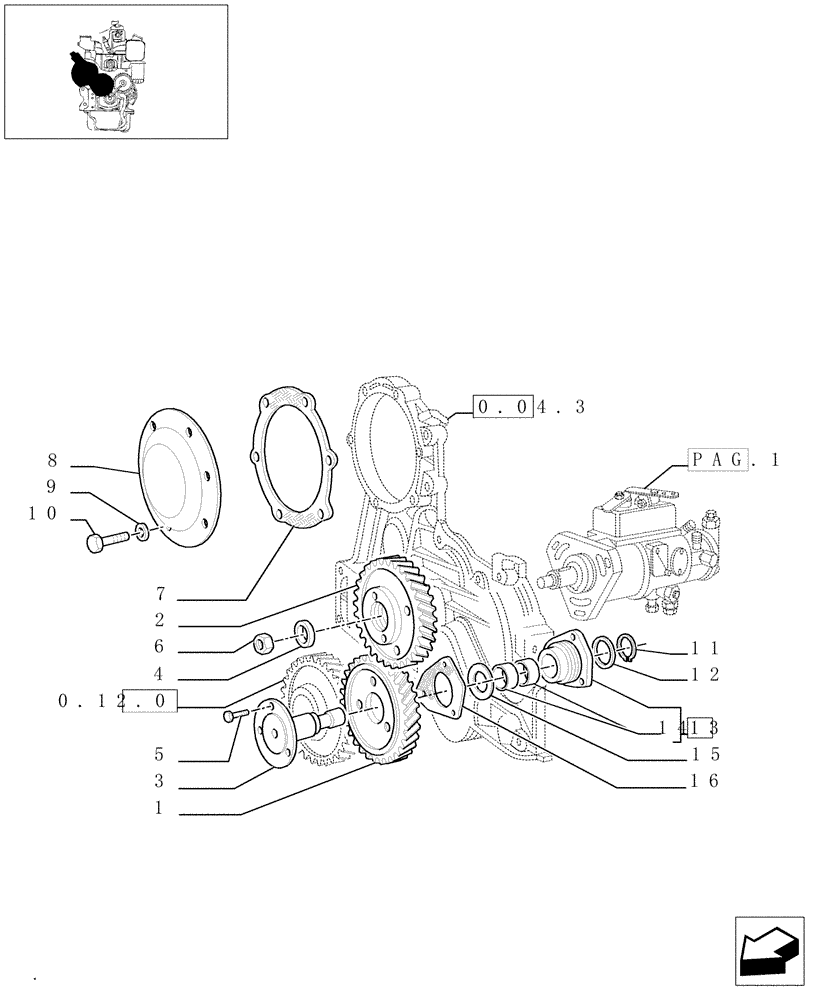

Запчасти Case IH JX95 (0.14.0/02[02]) - FUEL INJECTION PUMP DRIVE GEARS (BEFORE S/N 13286) (01) - ENGINE

1

4770056

GEAR

1шт.

2

99448921

GEAR

1шт.

3

4784054

SHAFT

1шт.

4

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

1шт.

5

4798845

BOLT,M8 x 1.25 x 16.50mm

M8 x 1.25 x 16.5

4шт.

6

17038821

NUT

M14 x 1.5

1шт.

7

98400781

GASKET,0.8mm Thk

1шт.

8

4783048

COVER

1шт.

9

13550304

WASHER,8mm ID x 18mm OD x 2mm Thk

D=8.4 x 16 mm

6шт.

10

16605624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8

Cap, HH, CL 8.8, M8 x 1.25 x 25 mm

1шт.

10

16044424

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

M8 x 1.25 x 60

4шт.

10

61315661

BOLT

1шт.

11

4769420

SNAP RING,33.20mm ID

1шт.

12

4769419

WASHER

1шт.

13

4784055

SUPPORT

1шт.

14

4769418

BUSHING

2шт.

15

4667452

WASHER,37.1mm ID x 55mm OD x 1.5mm Thk

1шт.

16

98400787

GASKET,0.8mm Thk

2шт.
