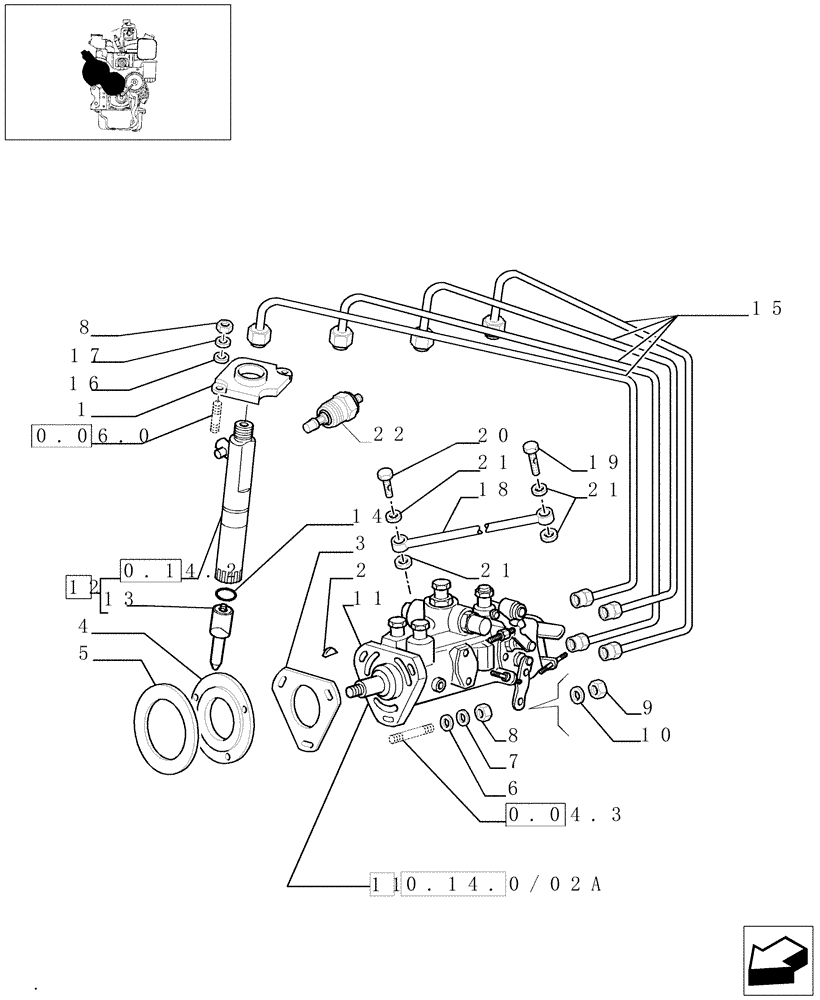

Запчасти Case IH JX95 (0.14.0/02[01]) - FUEL INJECTION PUMP ASSEMBLY (BEFORE S/N 13286) (01) - ENGINE

1

4780612

BRACKET

4шт.

2

10205810

WOODRUFF KEY,4mm x 6.5mm x 15.72mm

1шт.

3

4851923

GASKET,0.8mm Thk

1шт.

4

4607646

SPACER,50mm ID x 116.05mm OD x 6mm L

1шт.

5

98400782

GASKET,0.8mm Thk

1шт.

6

12647121

WASHER,8.15mm ID x 20mm OD x 3mm Thk

3шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

M8 x 16 x 1.4

3шт.

8

43362

NUT,M8 x 1.25, Cl 10

11шт.

9

17037721

NUT

M5

1шт.

10

11199271

LOCK WASHER

M5

1шт.

11

500324968

FUEL INJECTION PUMP

NA Only, Incl. 22

1шт.

11

500324968R

REMAN-FUEL INJ PUMP

1шт.

11

500324968C

CORE-FUEL INJ PUMP

Return Number

1шт.

11

99475605

FUEL INJECTION PUMP

Incl. 22

1шт.

12

500307714

FUEL SYSTEM INJECTOR

4шт.

12

500307714R

REMAN-INJECT NOZZLE

4шт.

12

500307714C

CORE-NOZZLE, INJECT

Return Number

4шт.

13

99469341

NOZZLE

Assy

4шт.

14

14453589

O-RING,Cl II-18, 70 Duro, .739" ID x .070" Thk

4шт.

15

99449006

HOSE KIT

1шт.

16

17089574

SEALING WASHER

D=8 mm

8шт.

17

771326

WASHER,8.40mm ID

D=8 mm

8шт.

18

99449533

RIGID TUBE

1шт.

19

4833907

BANJO BOLT

1шт.

20

4753761

BANJO BOLT

1шт.

21

2852057

SEALING WASHER,M8 x 12 x 1 Thk

4шт.

22

99478110

SOLENOID,24V

1шт.
