Запчасти Case IH JX95 (0.10.5[02]) - DYNAMIC BALANCER, GEARS & SHAFTS (01) - ENGINE

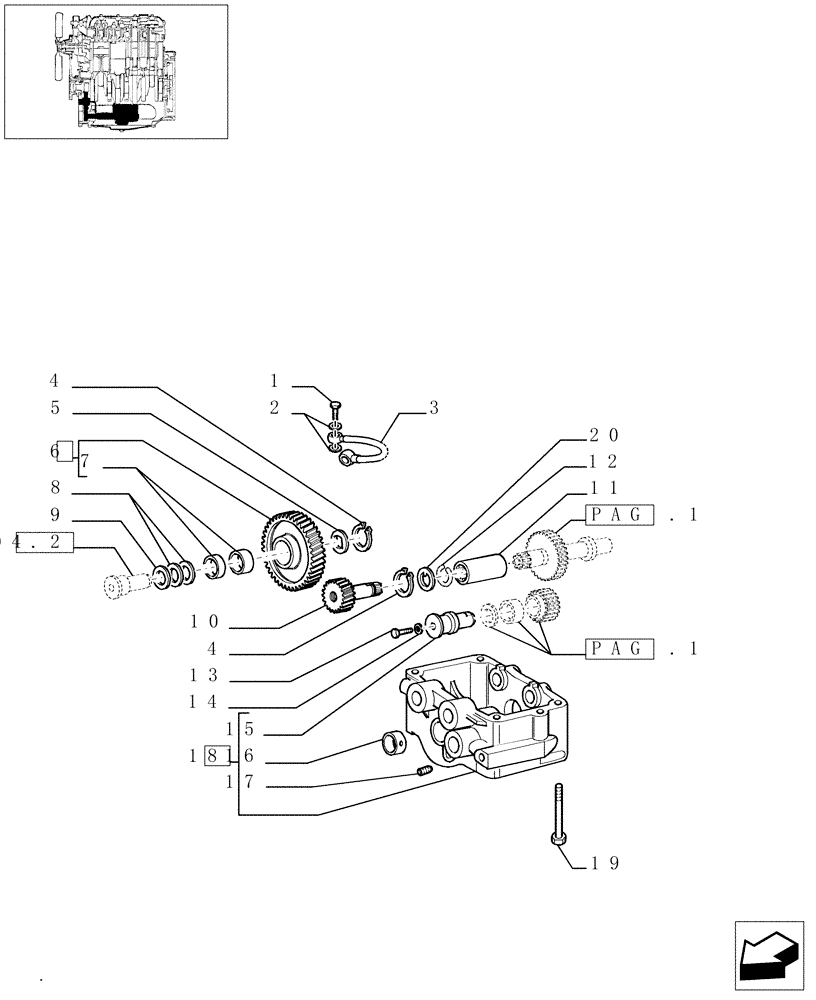

Схема запчастей Case IH JX95 - (0.10.5[02]) - DYNAMIC BALANCER, GEARS & SHAFTS (01) - ENGINE
13
pag .1
8
10
9
15
1
4
3
14
4
2
18
20
12
5
17
pag .1
16
11
19
6
0.04.2
7

Артикул

Название

Примечание

Количество

1

11903817

BANJO BOLT

10 x 1.25 x 19

2шт.

2

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

D=8 x 12 x 1.5 mm

4шт.

3

4812938

RIGID TUBE

1шт.

4

4600329

SNAP RING,29.60mm ID

2шт.

5

4667450

WASHER,32.2mm ID x 50mm OD x 3mm Thk

1шт.

6

4812932

GEAR

1шт.

7

4812465

BUSHING

2шт.

8

4834331

WASHER

2шт.

9

4600386

WASHER,32.2mm ID x 50mm OD x 3mm Thk

1шт.

10

4770244

GEAR

JX75 NAR, JX85 NAR, JX75 EUROPE, JX85 EUROPE

1шт.

10

98418381

GEAR

JX95 NAR, JX95 EUROPE

1шт.

11

4605612

UNIVERSAL JOINT

JX75 NAR, JX85 NAR, JX75 EUROPE, JX85 EUROPE

1шт.

11

98415087

UNIVERSAL JOINT

JX95 NAR, JX95 EUROPE

1шт.

12

98415095

LOCKING RING

JX95 NAR, JX95 EUROPE

1шт.

13

16044524

SCREW,Hex, M8 x 1.25 x 65mm, Cl 8.8

1шт.

14

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

M8 x 16 x 1.4

1шт.

15

4788666

PIN,30mm OD x 61.1mm L

1шт.

16

4670935

BUSHING,31.48mm ID x 36.02mm OD x 16.7mm L

1шт.

17

99434231

PLUG

M10 x 1.25

6шт.

18

4792111

HOUSING

JX75 NAR, JX85 NAR, JX75 EUROPE, JX85 EUROPE

1шт.

18

98415171

HOUSING

JX95 NAR, JX95 EUROPE

1шт.

19

4778867

BOLT,M12 x 1.25 x 114.50mm

M12 x 114.5

4шт.

20

4668200

THRUST WASHER

1шт.

Выбрано товаров: 23
