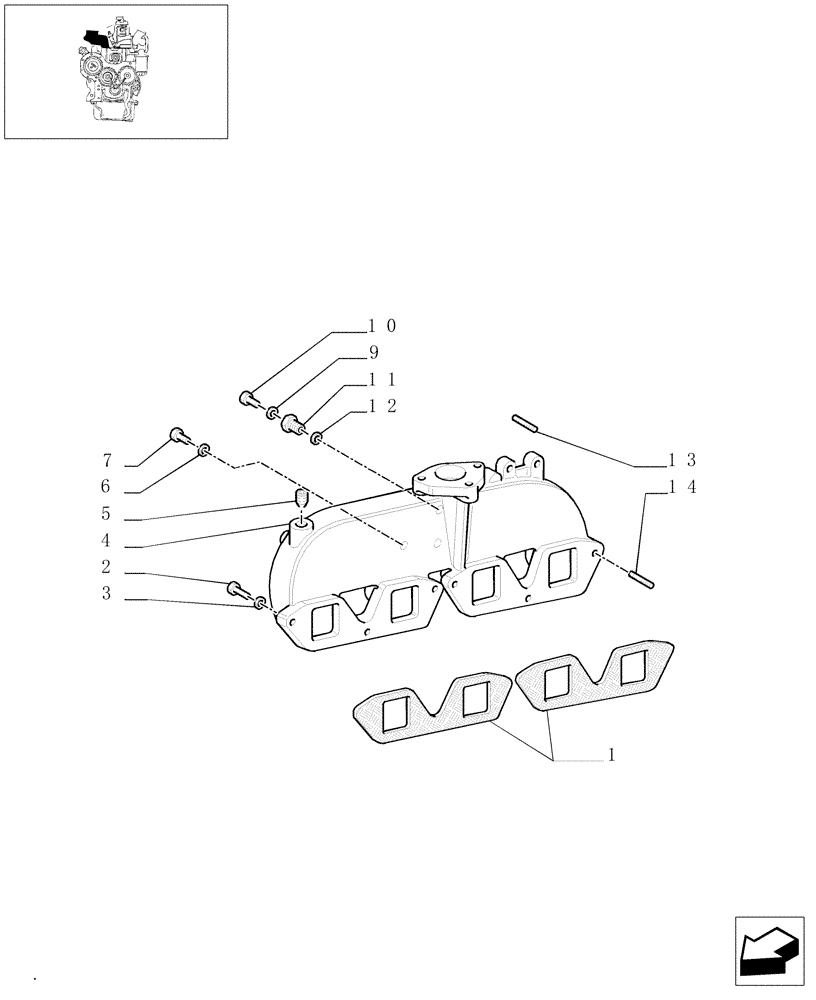

Запчасти Case IH JX95 (0.07.1/02) - INTAKE MANIFOLD (BEFORE S/N 13286) (01) - ENGINE

1

4851921

GASKET,0.8mm Thk

2шт.

2

13550304

WASHER,8mm ID x 18mm OD x 2mm Thk

D=8.4 x 16 mm

5шт.

3

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

M8 x 1.25 x 35

5шт.

4

98409114

INLET MANIFOLD

1шт.

5

16997711

PLUG

M22 x 1.5

1шт.

6

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

1шт.

7

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

9

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

D=10 x 14 x 1 mm

1шт.

10

11903011

PLUG,M10 x 1 x 11, Cl5.8

1шт.

11

4663081

HYD CONNECTOR,1/2" x M10 x 1

1шт.

12

10279560

SEALING WASHER,22.3mm ID x 28mm OD x 1mm Thk

1шт.

13

13546321

STUD

M10 x 25

2шт.

14

13543321

STUD

M8 x 16 x 20

1шт.
