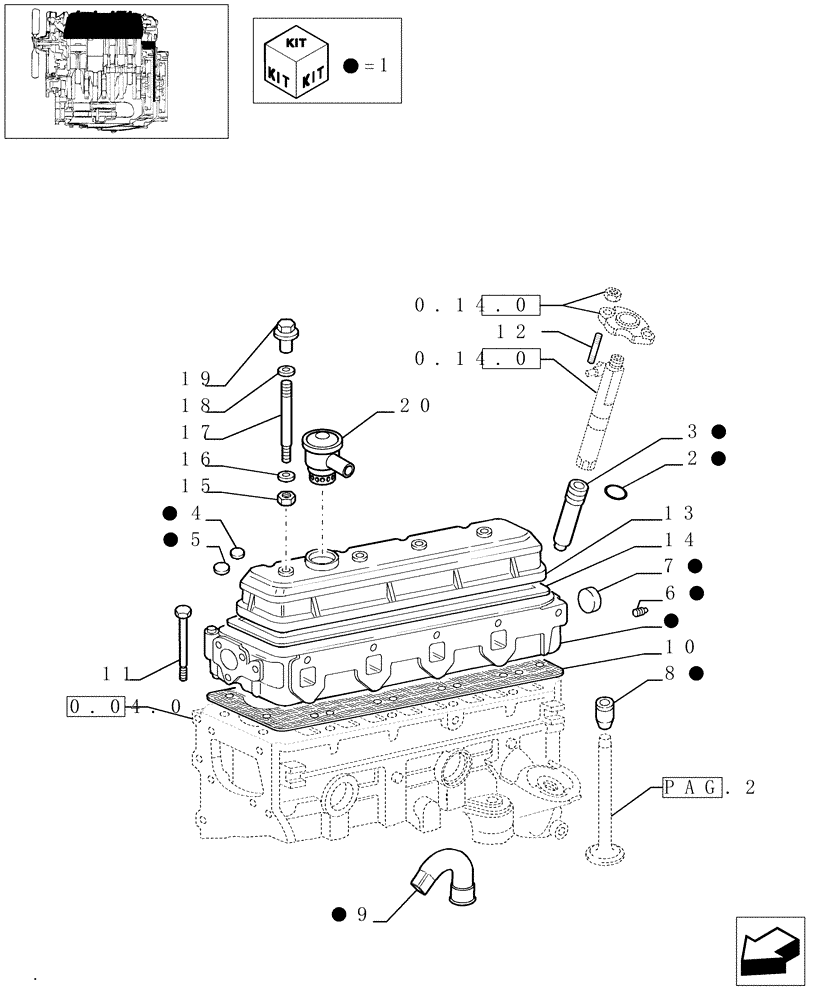

Запчасти Case IH JX95 (0.06.0/05[01]) - CYLINDER HEAD (AFTER S/N 13287) (01) - ENGINE

1

504066010

CYLINDER HEAD

Assy

1шт.

2

14453981

O-RING,0.989" ID x 0.07" Width

8шт.

3

4770859

SLEEVE

4шт.

4

14282170

PLUG,M20, Tapered, Stainless

1шт.

5

14282470

PLUG,M28, Tapered, Stainless

8шт.

6

99434231

PLUG

M10 x 1.25

1шт.

7

14282970

PLUG,M45, Tapered, Stainless

1шт.

8

4802126

VALVE GUIDE

+0.0

8шт.

8

4802127

VALVE GUIDE

+0.2

8шт.

9

4818862

HYD TUBE

4шт.

10

98456215

GASKET,1.35mm Thk

Thk 1.35

1шт.

10

98456216

CYLINDER HEAD GASKET,1.54mm Thk

Thk 1.54

1шт.

10

99435433

CYLINDER HEAD GASKET

Thk 1.54

1шт.

11

4796457

BOLT,Flng, M12 x 1.25 x 122.5mm

M12 x 1.25

18шт.

12

500380521

STUD,M5 x 12 x 45mm

M8 x 1.25 x 45

8шт.

13

99449541

VALVE COVER

(8045.05/06)

1шт.

14

500301351

GASKET

1шт.

15

43362

NUT,M8 x 1.25, Cl 10

4шт.

16

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

8шт.

17

98458149

STUD,M8 x 88mm

M8 x 1.25 x 76

4шт.

18

98416134

SEALING WASHER,13mm ID x 24mm OD x 1.5mm Thk

4шт.

19

98417659

NUT,Hex Flg, M8, 1.25mm Pitch

4шт.

20

504058466

BREATHER

1шт.
