(1.87.0/02[03]) - MUDGUARDS AND FOOTBOARDS - FOR HIGH CLEARANCE VERSION

Запчасти Case IH JX95 (1.87.0/02[03]) - MUDGUARDS AND FOOTBOARDS - FOR HIGH CLEARANCE VERSION (08) - SHEET METAL

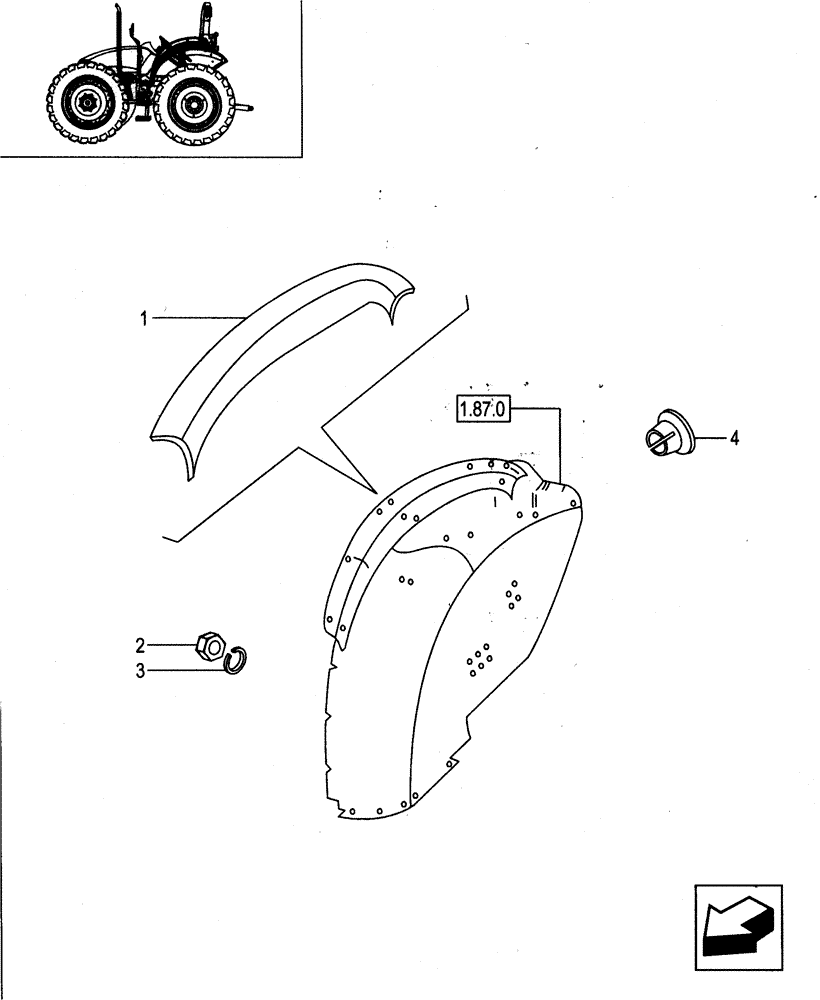

Схема запчастей Case IH JX95 - (1.87.0/02[03]) - MUDGUARDS AND FOOTBOARDS - FOR HIGH CLEARANCE VERSION (08) - SHEET METAL
1.87.0
4
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5092828

COVER

RH

1шт.

1

5092829

COVER

LH

1шт.

2

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

6шт.

3

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

6шт.

4

5093850

PLUG,9mm OD

D=9

10шт.
