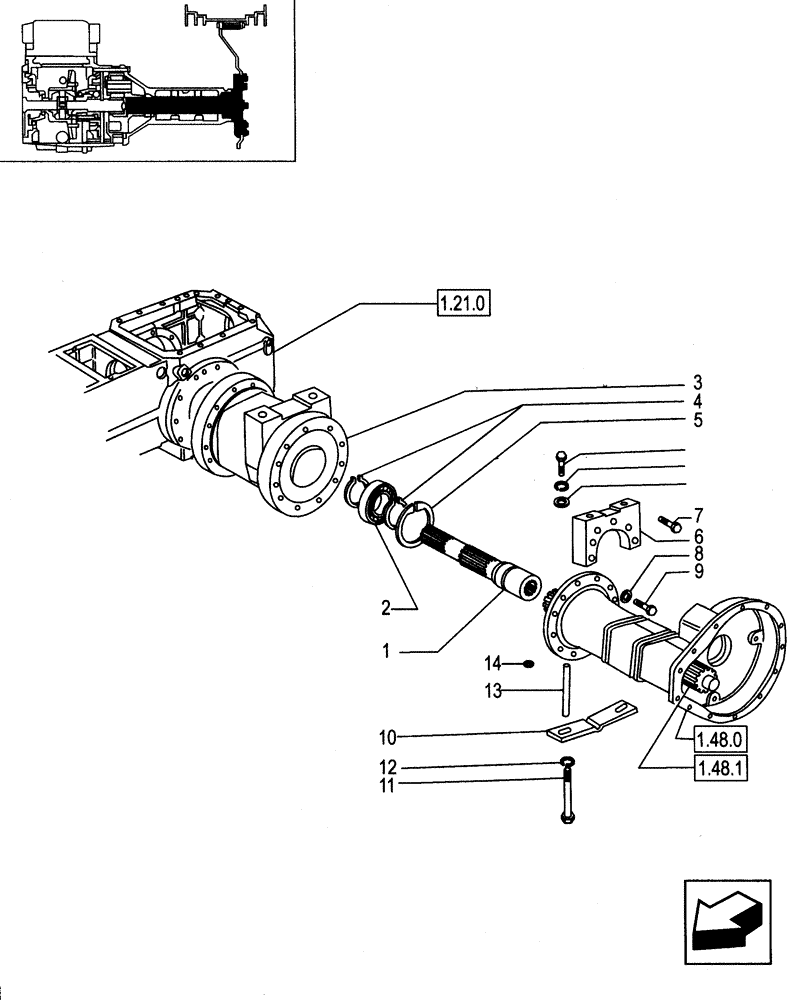

Запчасти Case IH JX95 (1.48.1/03[01]) - (VAR.428) SPACER INCREASING REAR TRACK SETTING - FOR HIGH CLEARANCE VERSION (05) - REAR AXLE

1

5151197

EXTENSION

LH

1шт.

1

5151198

SPLINED COUPLING

RH

1шт.

2

26794680

BALL BEARING,70.00mm x 125.00 x 24.00mm

70 x 125 x 24

2шт.

3

5151196

SPACER

2шт.

4

11070376

SNAP RING,M70, Ext

1шт.

5

11076176

SNAP RING,M125, Int

2шт.

6

5094514

SPACER

2шт.

7

16241274

BOLT,Hex, M12 x 110mm

12шт.

8

11198679

BELLEVILLE WASHER,13mm ID x 24mm OD x 0.6mm Thk

24шт.

9

15540831

BOLT,Hex, M12 x 1.25 x 50mm, Cl 10.9

12шт.

10

5094515

TENSIONER

2шт.

11

5094565

BOLT

4шт.

12

10572279

WASHER,M18

4шт.

13

5094584

BUSHING

4шт.

14

10721021

NUT,M18 x 1.5, Cl 10

4шт.
