Запчасти Case IH JX95 (1.58.2/01) - STEERING PIVOT PINS - RELEVANT PARTS - FOR HIGH CLEARANCE VERSION (04) - FRONT AXLE & STEERING

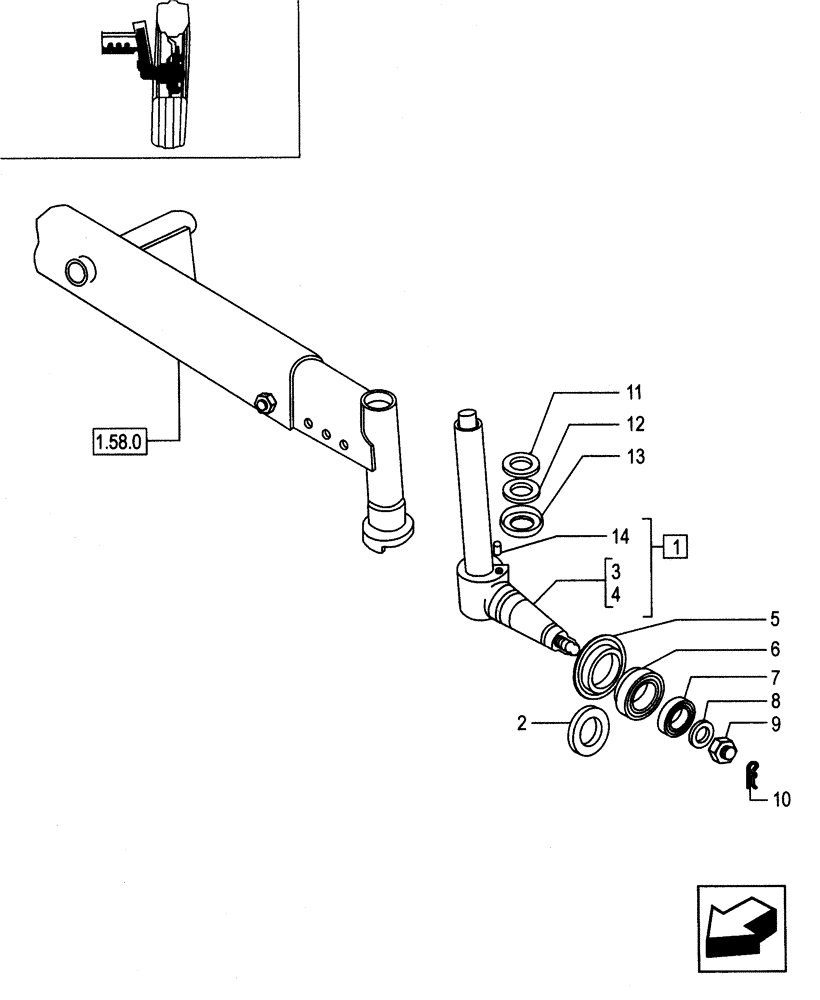

Схема запчастей Case IH JX95 - (1.58.2/01) - STEERING PIVOT PINS - RELEVANT PARTS - FOR HIGH CLEARANCE VERSION (04) - FRONT AXLE & STEERING
4
13
14
8
1.58.0
3
12
1
5
9
11
6
2
10
7

Артикул

Название

Примечание

Количество

1

5095070

PIN

Assy, RH

1шт.

1

5095072

PIN

Assy, LH

1шт.

2

5090133

SEALING RING,50.1mm ID x 73mm OD x 3.9mm Thk

SEALRING

2шт.

3

5095071

STUB AXLE/STEERING S

1шт.

4

5095069

STUB AXLE/STEERING S

1шт.

5

5090135

SEAL,50mm ID x 74mm OD x 10mm Thk

74 x 50 x 10

2шт.

6

5132342

TAPERED BEARING,Roller, 41.3mm ID x 73.4mm OD x 17.6mm W

2шт.

7

5132343

TAPERED BEARING,25.4mm ID x 57.17mm OD x 19.43mm W

2шт.

8

5086901

WASHER,20.5mm ID x 32mm OD x 3mm Thk

2шт.

9

10724720

SLOTTED NUT,M20 x 1.5

2шт.

10

10733801

COTTER PIN,M4 x 36

2шт.

11

561953

THRUST WASHER,38.12mm ID x 61mm OD x 4mm Thk

2шт.

12

5144475

THRUST WASHER,38mm ID x 61mm OD x 4mm Thk

2шт.

13

566125

CUP

2шт.

14

10839510

DOWEL,M6 x 9

2шт.

Выбрано товаров: 15
