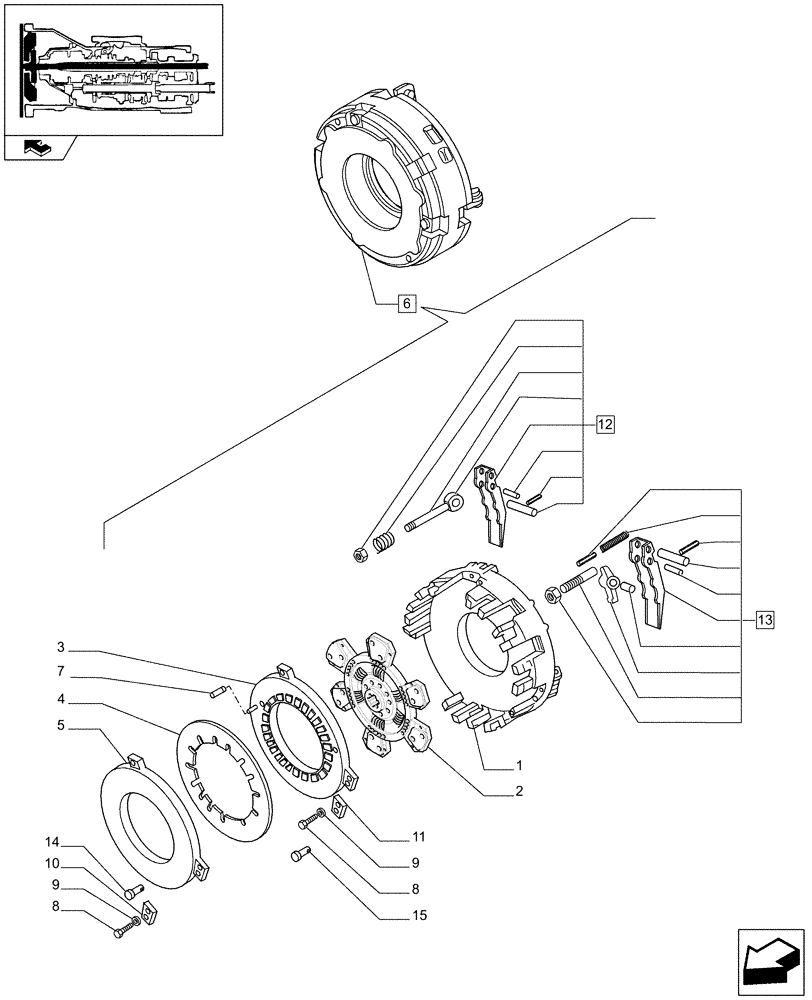

Запчасти Case IH JX95 (1.25.0/ B) - CLUTCH - RELEVANT PARTS (03) - TRANSMISSION

1

5092806

CLUTCH HOUSING

Diameter Centered

1шт.

1

5092803R

REMAN-CLUTCH PLATE

Reman for New PN 5092806

1шт.

1

5092803C

CORE-CLUTCH PLATE

Return Number

1шт.

1

5094128

CLUTCH HOUSING

Pin Centered

1шт.

2

5092805

CLUTCH PLATE,310mm OD

1шт.

2

5092805R

REMAN-CLUTCH PLATE

Remanufactured, CLUTCH PLATE

1шт.

2

5092805C

CORE-CLUTCH PLATE

Return Number

1шт.

3

25174666

CLUTCH PLATE

1шт.

4

25174656

CLUTCH PLATE

1шт.

5

25280501

CLUTCH PLATE

1шт.

6

5092803

CLUTCH & DISC ASSY,360mm OD

1шт.

6

5092803R

REMAN-CLUTCH PLATE

JX95

1шт.

6

5092803C

CORE-CLUTCH PLATE

Return Number

1шт.

7

25173704

PIN

3шт.

8

25286430

BOLT

3шт.

9

25274715

WASHER

3шт.

10

25221058

PLATE

3шт.

11

25220538

PLATE

3шт.

12

5093019

REPAIR KIT

Release Lever, Small

1шт.

13

5093018

REPAIR KIT

Release Lever, Large

1шт.

14

25276325

RIVET

3шт.

15

25276324

RIVET

3шт.
