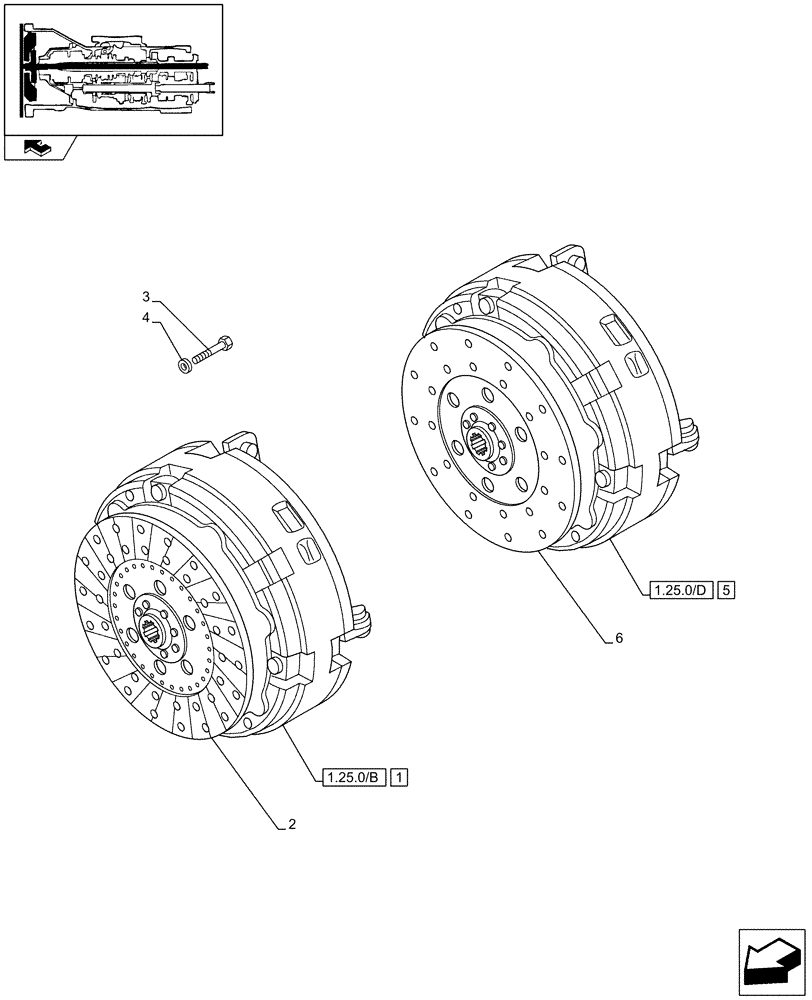

Запчасти Case IH JX95 (1.25.0[02]) - CLUTCH (03) - TRANSMISSION

1

5092803

CLUTCH & DISC ASSY,360mm OD

1шт.

Outside Diameter centered Clutch (for centering on the flywheel PN 99440516)

1шт.

5092803R

REMAN-CLUTCH PLATE

JX95

1шт.

5092803C

CORE-CLUTCH PLATE

Return Number

1шт.

1

5089336

CLUTCH & DISC ASSY,360mm OD

1шт.

Dowel Pin Located Clutch (for centering on the flywheel PN 99440518)

1шт.

2

5089337

CLUTCH PLATE,310mm OD

PTO

1шт.

5089337R

REMAN-CLUTCH PLATE

Reman for New PN 5089337

1шт.

5089337C

CORE-CLUTCH PLATE

Return Number, PTO

1шт.

3

15971824

SCREW,Hex, M10 x 1.25 x 100mm, Cl 8.8

6шт.

4

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

6шт.

5

84177332

CLUTCH & DISC ASSY,360mm OD

1шт.

CNH Parts Option

1шт.

6

84177335

CLUTCH PLATE,310mm OD

1шт.

CNH Parts Option

1шт.
