(1.19.1[04]) - DRY AIR FILTER - SLEEVES, SUPPORTS AND COLLARS

Запчасти Case IH JX95 (1.19.1[04]) - DRY AIR FILTER - SLEEVES, SUPPORTS AND COLLARS (02) - ENGINE EQUIPMENT

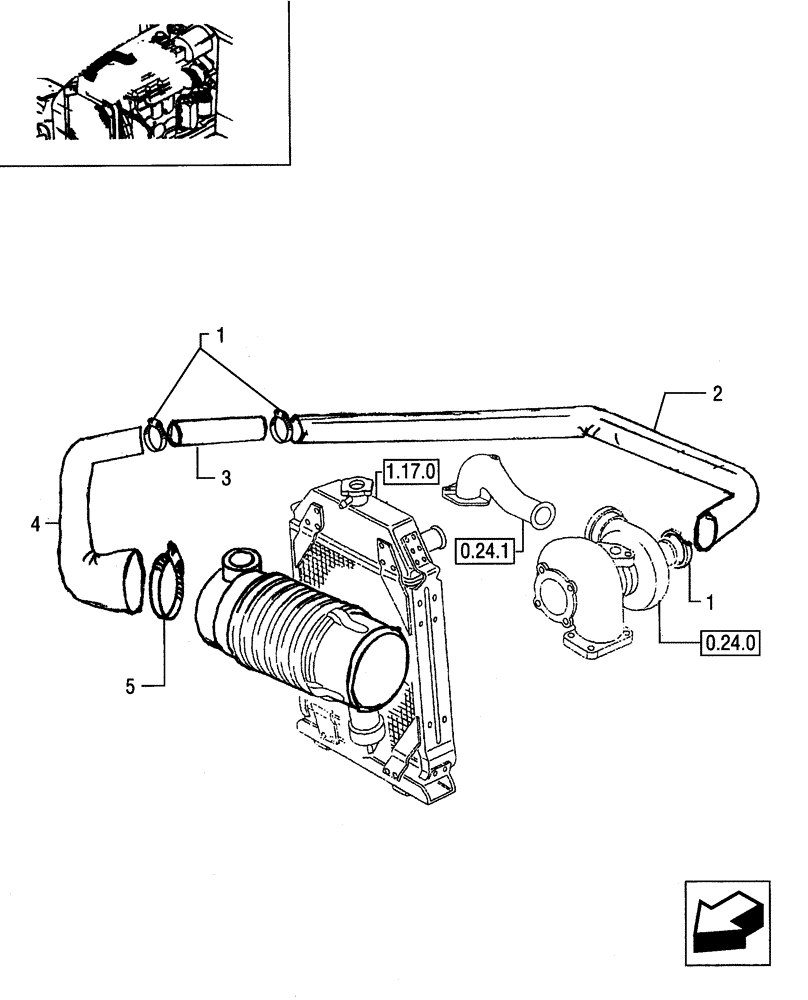

Схема запчастей Case IH JX95 - (1.19.1[04]) - DRY AIR FILTER - SLEEVES, SUPPORTS AND COLLARS (02) - ENGINE EQUIPMENT
1
4
3
5
1
0.24.0
0.24.1
1.17.0
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5085782

CLAMP

2шт.

2

5092629

HOSE

1шт.

3

5090994

TUBE

1шт.

4

5090993

ELBOW

1шт.

5

13001290

HOSE CLAMP,90mm - 110mm, Worm Gear

2шт.
