(1.19.1[02]) - DRY AIR FILTER - SUPPORT AND INDICATOR

Запчасти Case IH JX95 (1.19.1[02]) - DRY AIR FILTER - SUPPORT AND INDICATOR (02) - ENGINE EQUIPMENT

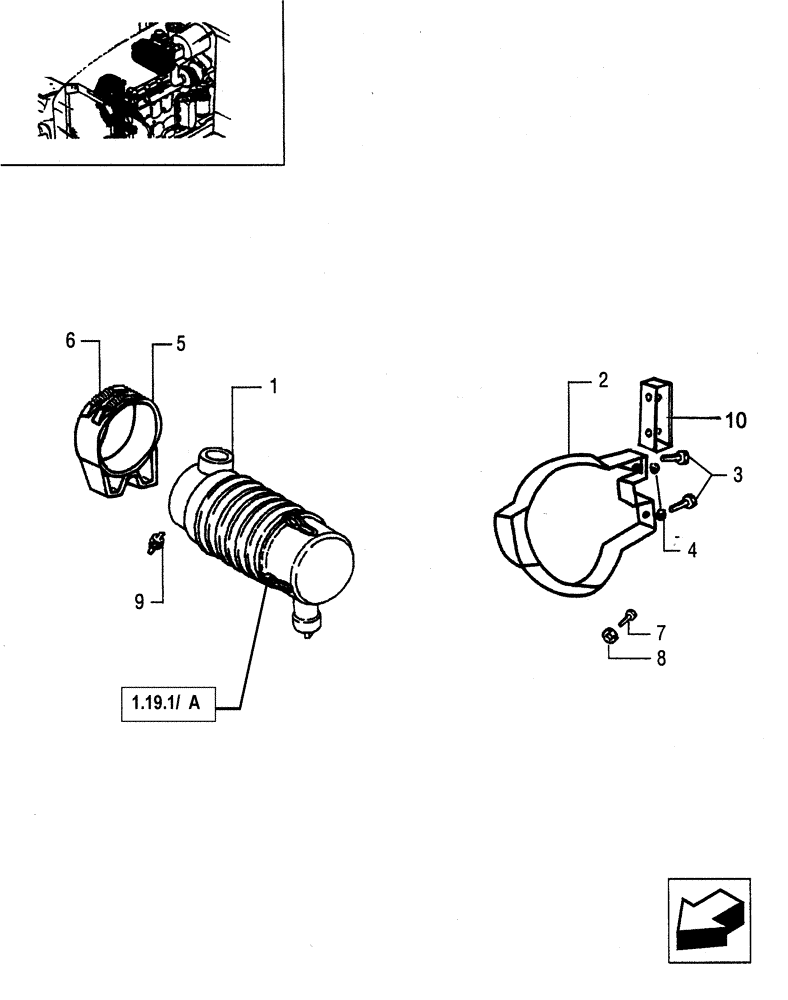

Схема запчастей Case IH JX95 - (1.19.1[02]) - DRY AIR FILTER - SUPPORT AND INDICATOR (02) - ENGINE EQUIPMENT
3
2
7
9
4
6
8
5
10
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5150017

FILTER ASSY

1шт.

2

5168072

BRACKET

1шт.

3

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

4

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

5

5093989

SUPPORT

1шт.

6

5090988

SPRING,12mm OD x 50mm

2шт.

7

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

8

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

9

5138819

INDICATOR

1шт.

10

5092628

SPACER

1шт.
