Запчасти Case IH JX95 (1.17.0[02]) - RADIATOR - CAP, BRACKET AND SUPPORT (02) - ENGINE EQUIPMENT

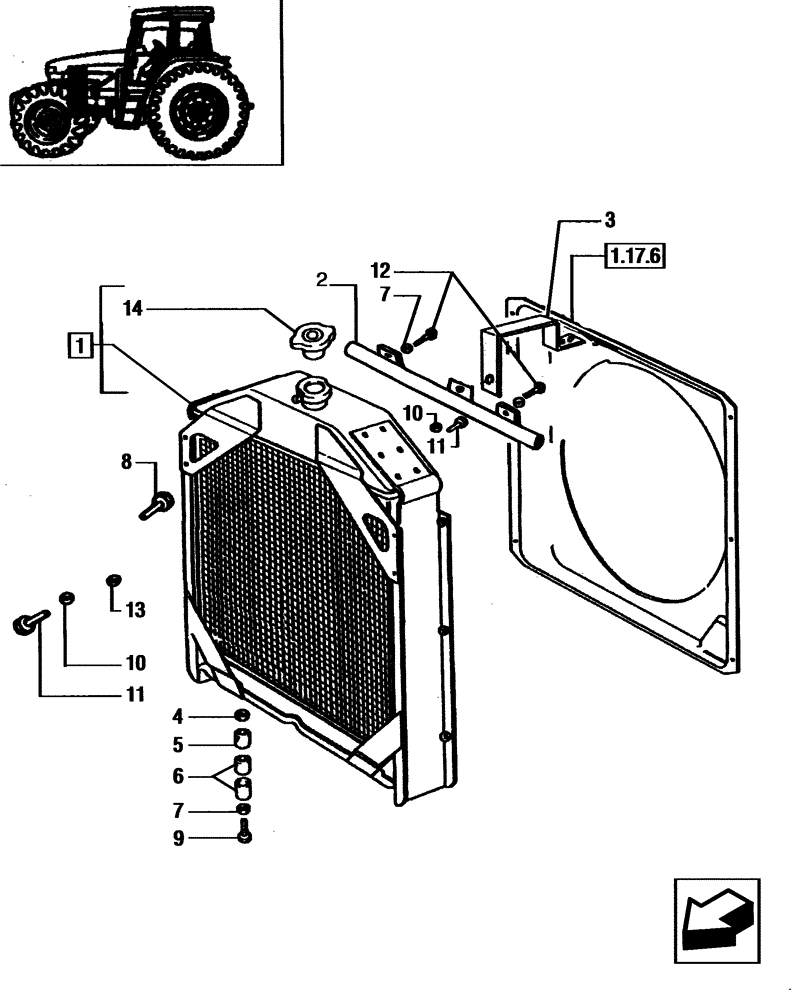

Схема запчастей Case IH JX95 - (1.17.0[02]) - RADIATOR - CAP, BRACKET AND SUPPORT (02) - ENGINE EQUIPMENT
9
2
5
10
10
7
4
1.17.6
13
7
11
6
12
14
3
11
8
1

Артикул

Название

Примечание

Количество

1

5096063

RADIATOR

Assy, Serial Range: -C6295

1шт.

See Also SGR 1.17.7 for Over Heating Engine Kit

1шт.

1

5096595

RADIATOR

, Start Serial: D6295

1шт.

2

5092613

SUPPORT

1шт.

3

5092589

RETAINER

3шт.

4

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

4шт.

5

5102703

SPACER,11mm ID x 15mm OD x 63mm L

2шт.

6

5108225

RUBBER MOUNTING

4шт.

7

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

8

15687401

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 25mm

2шт.

9

15971621

SCREW,Hex, M10 x 1.25 x 90mm, Cl 8.8

2шт.

10

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

6шт.

11

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

12

16044721

SCREW,Hex, M8 x 75mm, Cl 8.8

2шт.

13

16100810

NUT,M8, Cl 8

2шт.

14

83935905

RADIATOR CAP

1шт.

Выбрано товаров: 16
