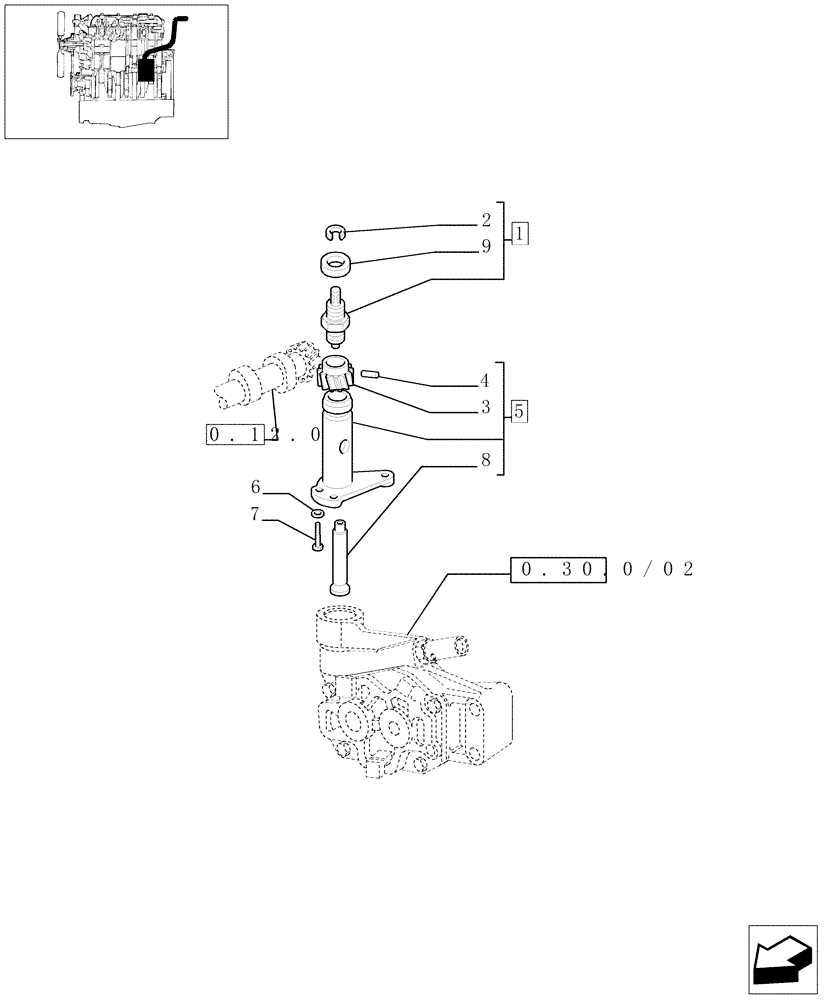

Запчасти Case IH JX95 (0.42.0/01) - TACHOMETER DRIVE (01) - ENGINE

1

500303538

ADAPTER

Assy

1шт.

2

13400575

LOCKING RING

M10

1шт.

3

4599726

DRIVEN GEAR

1шт.

4

4605293

PIN

1шт.

5

98415187

SUPPORT

Assy

1шт.

6

17089471

WASHER

D=16 x 8 mm, Thk=1.4 mm

2шт.

7

16605624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8

Cap, HH, CL 8.8, M8 x 1.25 x 25 mm

2шт.

8

4613297

SPINDLE

Assy

1шт.

9

40102813

GASKET

M6 x 15 x 4

1шт.
