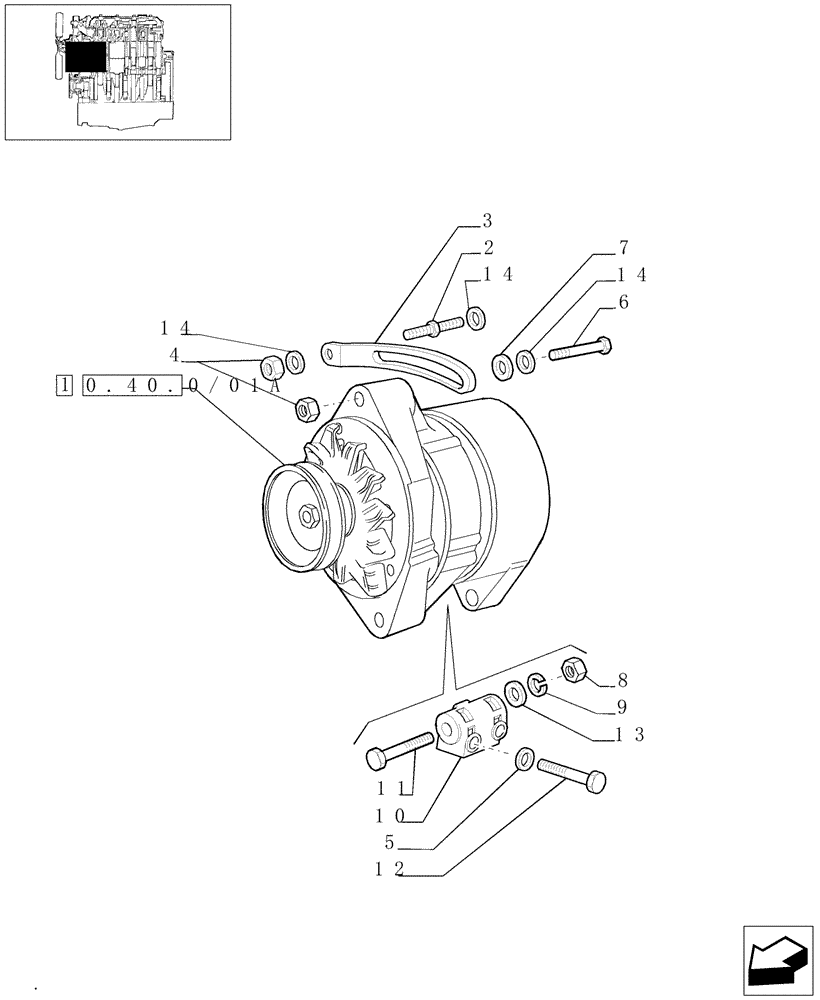

Запчасти Case IH JX95 (0.40.0/01) - ALTERNATOR (BEFORE S/N 13286) (01) - ENGINE

1

500364130

ALTERNATOR,85A, W/ Pulley

Marelli, 85 AMP, W/Cab

1шт.

500364130R

REMAN-ALTERNATOR

JX95U - CASE IH TRACTOR ALTERNATOR (BEFORE S/N 13286) (11/02-)

1шт.

500364130C

CORE-ALTERNATOR

Return Number

1шт.

2

4605854

STUD

1шт.

3

4787485

BELT TENSIONER

1шт.

4

17038221

NUT

CL 8, M10 x 1.25 mm

2шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

M8 x 16 x 1.4

2шт.

6

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

7

12646824

WASHER,10.2mm ID x 25mm OD x 2mm Thk

1шт.

8

17038621

NUT

CL 8, M12 x 1.25 mm

1шт.

9

11198673

LOCK WASHER,13mm ID x 24mm OD x 0.6mm Thk

12 x 24

1шт.

10

4600128

SUPPORT

1шт.

11

514-866

BOLT,Hex, M12 x 1.25 x 120mm, Cl 8.8, Full Thd

1шт.

11

15542021

SCREW,Hex, M12 x 1.25 x 140mm, Cl 8.8

W/Alternator, 85 AMP

1шт.

12

16044224

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

HH, CL 8.8, M8 x 1.25 x 50

2шт.

13

12646924

WASHER,12.2mm ID x 28mm OD x 3mm Thk

1шт.

14

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

3шт.
