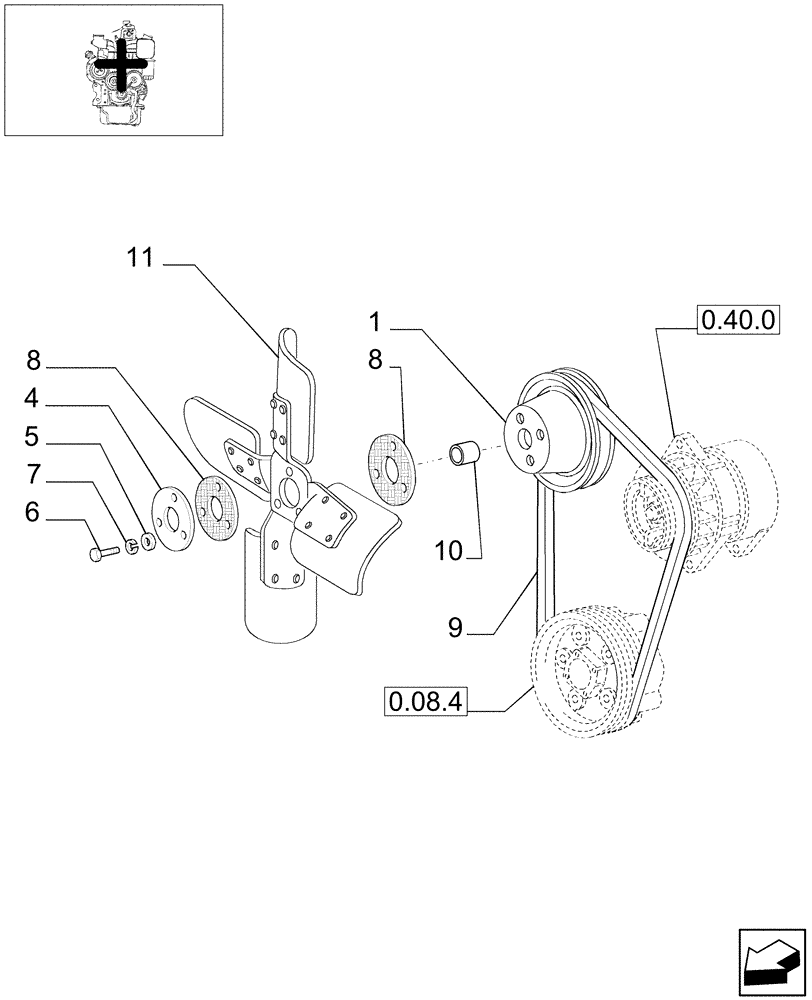

Запчасти Case IH JX95 (0.34.7/01) - FAN (BEFORE S/N 13286) (01) - ENGINE

1

4788537

DRIVEN PULLEY

1шт.

4

4584861

WASHER

1шт.

5

12638521

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

Lock, M8

3шт.

6

16044424

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

M8 x 1.25 x 60

3шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

M8 x 16 x 1.4

3шт.

8

574526

WASHER

2шт.

9

500369112

BELT

W/Alternator, 85 AMP, 1175 mm

1шт.

10

4724705

SPACER

1шт.

11

4796434

FAN,6 Blades, 450mm OD

1шт.
