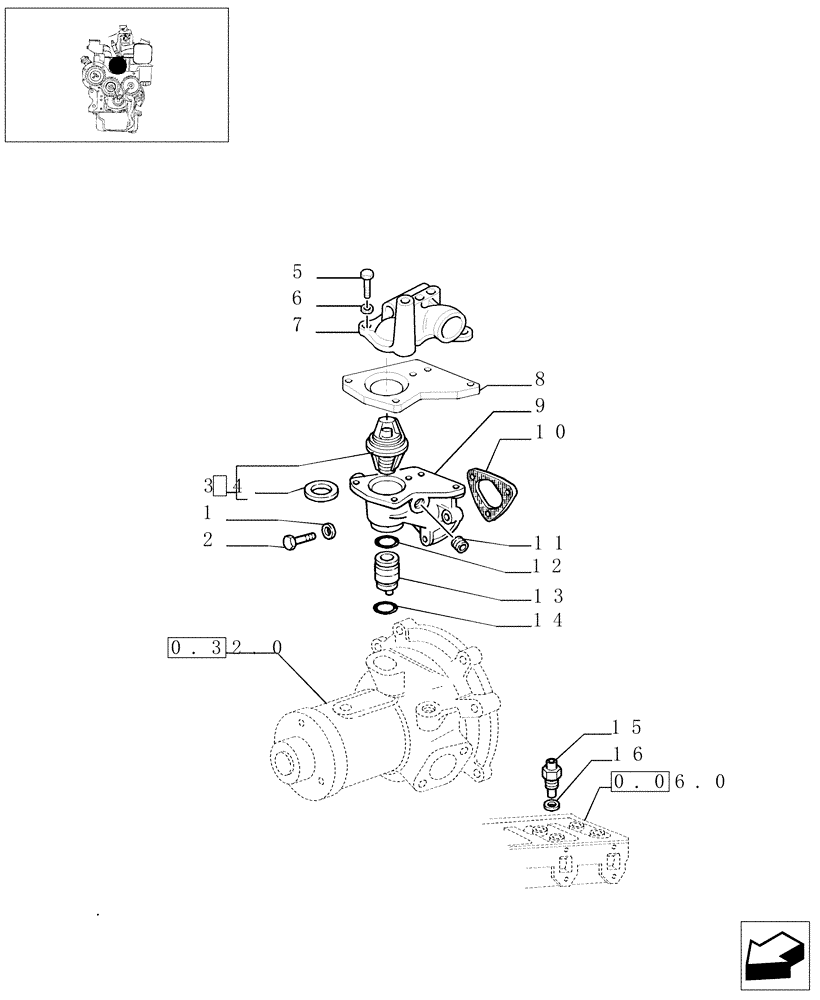

Запчасти Case IH JX95 (0.32.6/01) - THERMOSTAT AND RELATED PARTS (BEFORE S/N 13286) (01) - ENGINE

1

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

M3

3шт.

2

11234724

BOLT,Hex, M10 x 1.25 x 45, 8.8

2шт.

2

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

3

98463637

THERMOSTAT

Assy

1шт.

4

7303173

GASKET,4.3mm Thk

1шт.

5

16605624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8

Cap, HH, CL 8.8, M8 x 1.25 x 25 mm

2шт.

5

16606624

SCREW,Hex, M8 x 1.25 x 80mm

Cap, HH, M8 x 1.25 x 80

2шт.

5

16045024

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

M8 x 90

1шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

M8 x 16 x 1.4

5шт.

7

99450534

COVER

1шт.

8

99450535

SEAL

1шт.

9

4823619

BODY

1шт.

10

98400784

GASKET,0.5mm Thk

1шт.

11

500378047

PLUG

1шт.

12

14463281

O-RING,0.984" ID x 0.139" Width

D=24.9 mm, Thk=3.5 mm

1шт.

13

98415712

HYD CONNECTOR

1шт.

14

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

1шт.

15

4171667

SENSOR

Coolant

1шт.

16

4858609

WASHER,Brass

D=16 x 20 mm

1шт.
