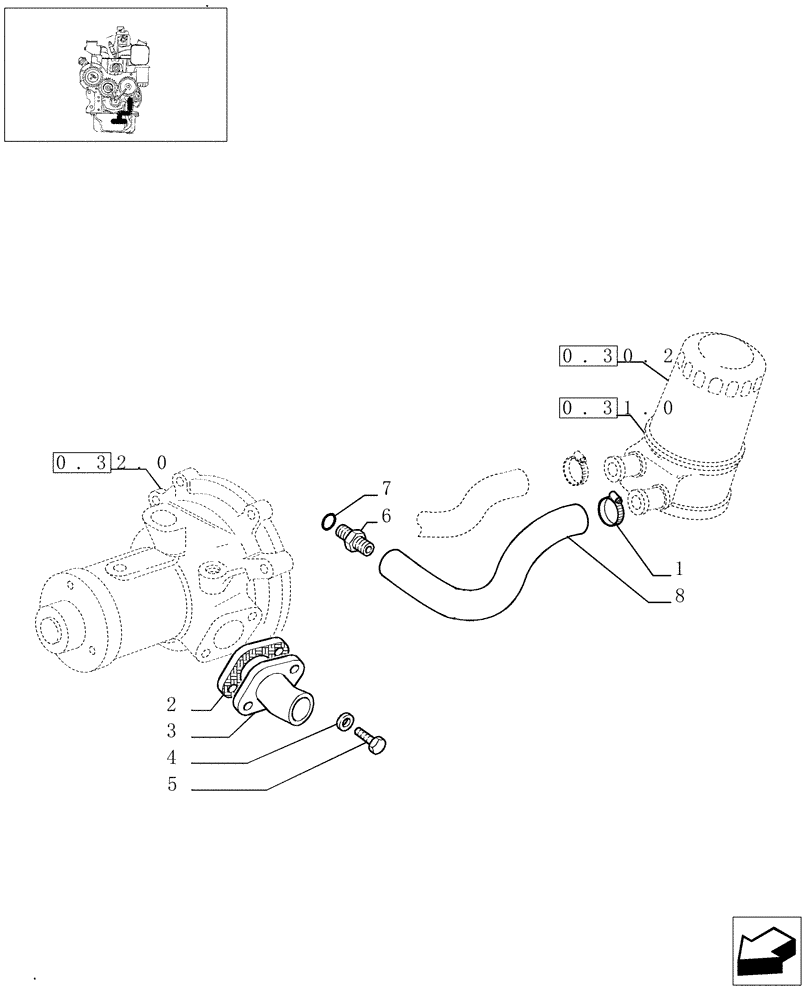

Запчасти Case IH JX95 (0.32.3/01) - WATER LINE (BEFORE S/N 13286) (01) - ENGINE

1

17764592

COLLAR

2шт.

2

98418621

GASKET,0.8mm Thk

1шт.

3

4697838

TUBE

1шт.

4

13550304

WASHER,8mm ID x 18mm OD x 2mm Thk

D=8.4 x 16 mm

2шт.

5

98401723

BOLT,Hex, M8 x 1.25 x 12mm

M10 x 1.25 x 15 x 40

2шт.

6

98418647

HYD CONNECTOR

1шт.

7

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

1шт.

8

98437580

HOSE

1шт.
