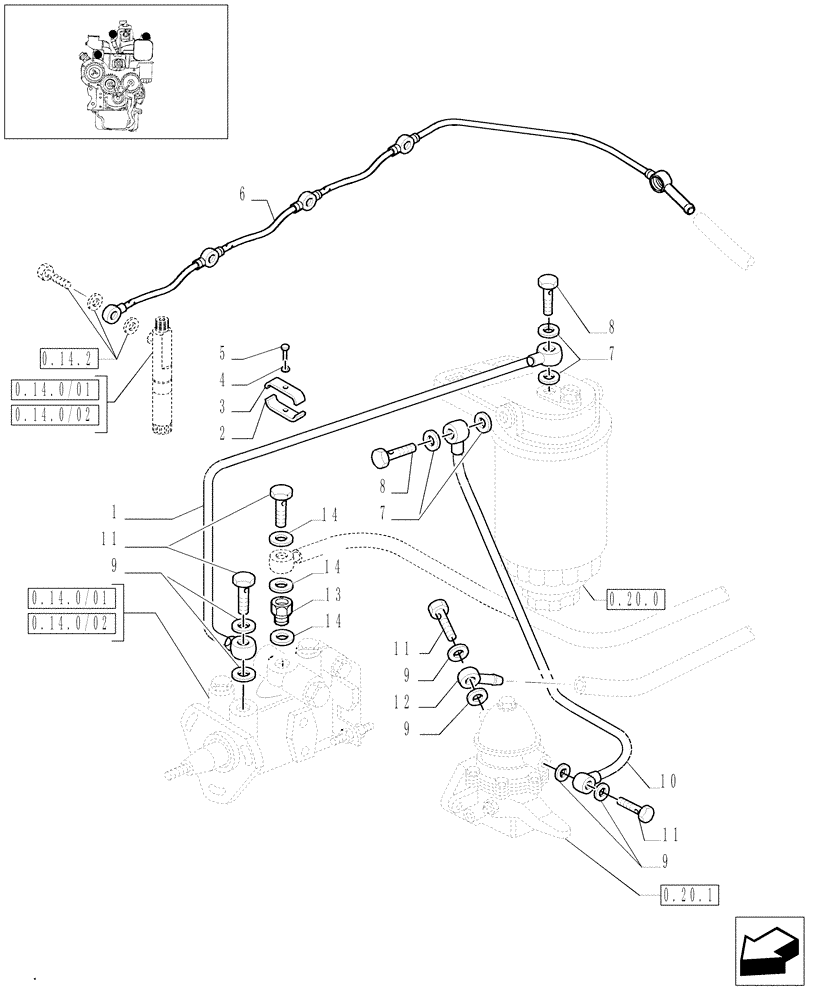

Запчасти Case IH JX90 (0.20.3/02) - FUEL SYSTEM (01) - ENGINE

1

504047525

TUBE

1шт.

2

4002890

CLAMP

1шт.

3

607942

CLAMP

1шт.

4

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

5

16603624

SCREW,Hex, M6 x 16mm, Cl 8.8

Cap, HH, CL 8.8, M6 x 1 x 16

1шт.

6

500319315

INJECTION PIPE

1шт.

7

98474308

SEALING WASHER,16mm ID x 22mm OD x 1.5mm Thk

4шт.

8

4864083

BANJO BOLT,M14 x 1.5 x 30mm

M14 x 1.5 x 30

2шт.

9

98474306

SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk

12 x 20 x 1.9

6шт.

10

504047526

TUBE

1шт.

11

4864082

BANJO BOLT

M12 x 1.5 x 25

4шт.

12

98416591

FITTING

Banjo

1шт.

13

4802434

BANJO BOLT

1шт.

14

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

3шт.
