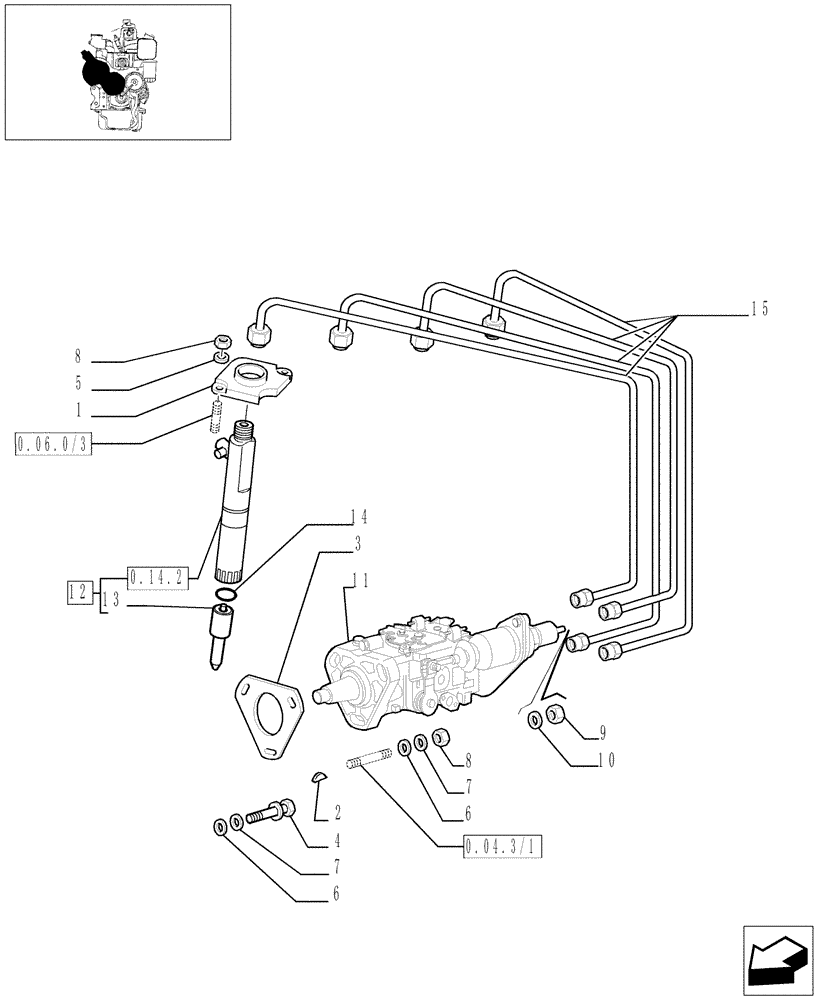

Запчасти Case IH JX90 (0.14.0/02[01]) - INJECTION PUMP (01) - ENGINE

1

4780612

BRACKET

4шт.

2

10205810

WOODRUFF KEY,4mm x 6.5mm x 15.72mm

1шт.

3

4851923

GASKET,0.8mm Thk

1шт.

4

500327046

SCREW

1шт.

5

771326

WASHER,8.40mm ID

D=8 mm

8шт.

6

12647121

WASHER,8.15mm ID x 20mm OD x 3mm Thk

3шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

8

43362

NUT,M8 x 1.25, Cl 10

11шт.

9

17037721

NUT

M5

1шт.

10

11199271

LOCK WASHER

M5

1шт.

11

504042214

FUEL INJECTION PUMP

1шт.

11

504042214R

REMAN-INJECTION PUMP

1шт.

11

504042214C

CORE-INJECTION PUMP

Return Number

1шт.

12

504054021

FUEL SYSTEM INJECTOR

4шт.

13

504051747

NOZZLE

4шт.

14

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

D=8X1X26

4шт.

15

99449006

HOSE KIT

1шт.
