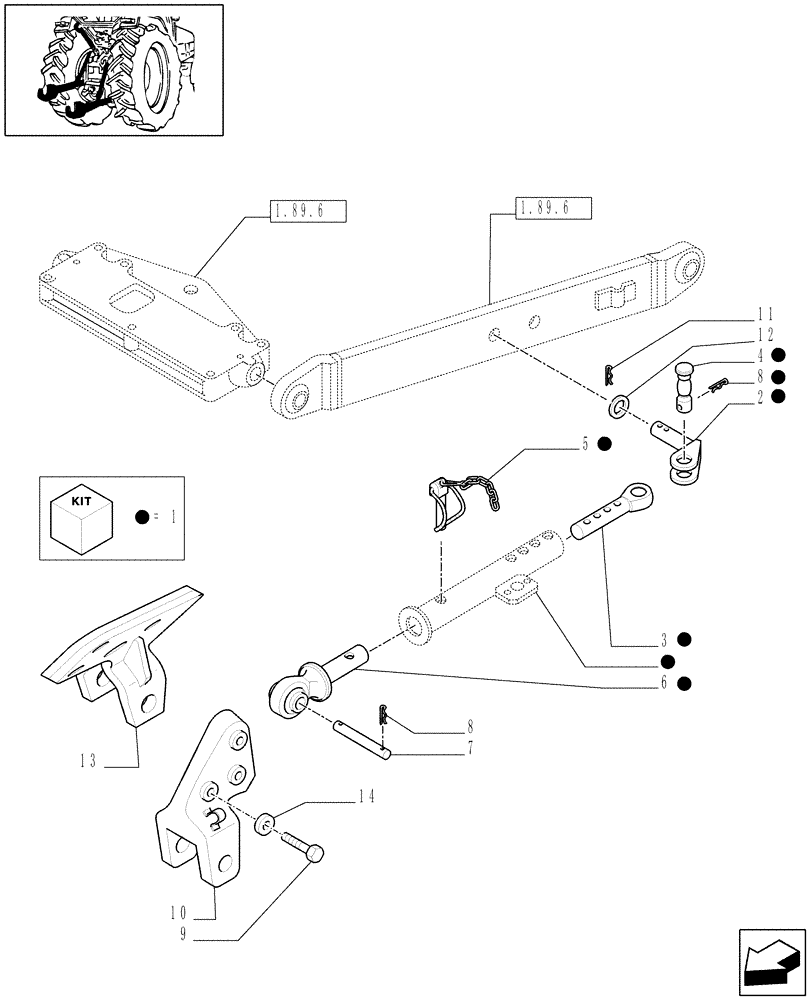

Запчасти Case IH JX90 (1.89.9/01) - LATERAL STABILIZERS (09) - IMPLEMENT LIFT

1

5189644

STABILIZER

2шт.

2

5123274

PIN

1шт.

3

87304420

END

1шт.

4

47133051

PIN,20mm OD x 59mm L

1шт.

5

82019234

PIN,14mm OD

2шт.

6

5174917

END

1шт.

7

5103860

PIN,19mm OD x 94mm L

2шт.

8

10798301

COTTER PIN,M6.3 x 36

3шт.

9

15981021

SCREW,Hex, M16 x 1.5 x 55mm, Cl 8.8

6шт.

10

5146649

SUPPORT

RH

1шт.

10

5146650

SUPPORT

LH

1шт.

11

5112606

COTTER PIN,2.5mm OD x 66.5mm L

2шт.

12

84275315

WASHER,28.5mm ID x 45mm OD x 4.5mm Thk

2шт.

13

5099093

SUPPORT

RH

1шт.

For High Clearance Version

1шт.

13

5099092

SUPPORT

LH

1шт.

For High Clearance Version

1шт.

14

12601774

WAVE WASHER,17mm ID x 30mm OD x 1.60mm, 6.30mm Max, CST, DAC

6шт.
