(1.68.5/04[02]) - (VAR.385) STANDARD FRONT AXLE W/LIMITED SLIP DIFF, W/ FRONT BRAKES (40KM/H) - LOGIC VALVE

Запчасти Case IH JX90 (1.68.5/04[02]) - (VAR.385) STANDARD FRONT AXLE W/LIMITED SLIP DIFF, W/ FRONT BRAKES (40KM/H) - LOGIC VALVE (04) - FRONT AXLE & STEERING

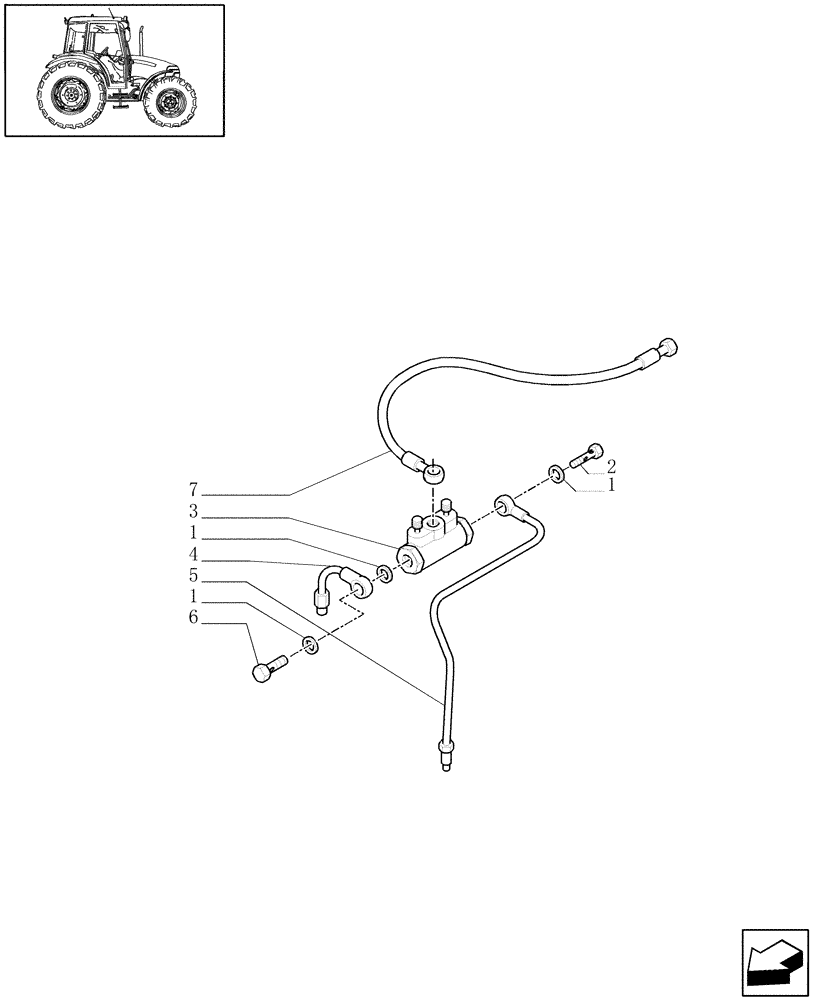

Схема запчастей Case IH JX90 - (1.68.5/04[02]) - (VAR.385) STANDARD FRONT AXLE W/LIMITED SLIP DIFF, W/ FRONT BRAKES (40KM/H) - LOGIC VALVE (04) - FRONT AXLE & STEERING
7
3
1
4
1
5
2
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12шт.

2

47132432

HYD CONNECTOR

1шт.

3

87748285

MASTER CYLINDER

1шт.

4

87647084

PIPE

1шт.

5

87647085

HOSE,5.00 mm ID x 950.00 mm

1шт.

6

5121685

BANJO BOLT,M12 x 1.5 x 23mm

3шт.

6

84175579

HYD CONNECTOR

1шт.

7

87647083

HOSE,4.60 mm ID, 5.40 mm ID x 110.00 mm

1шт.

Выбрано товаров: 8
