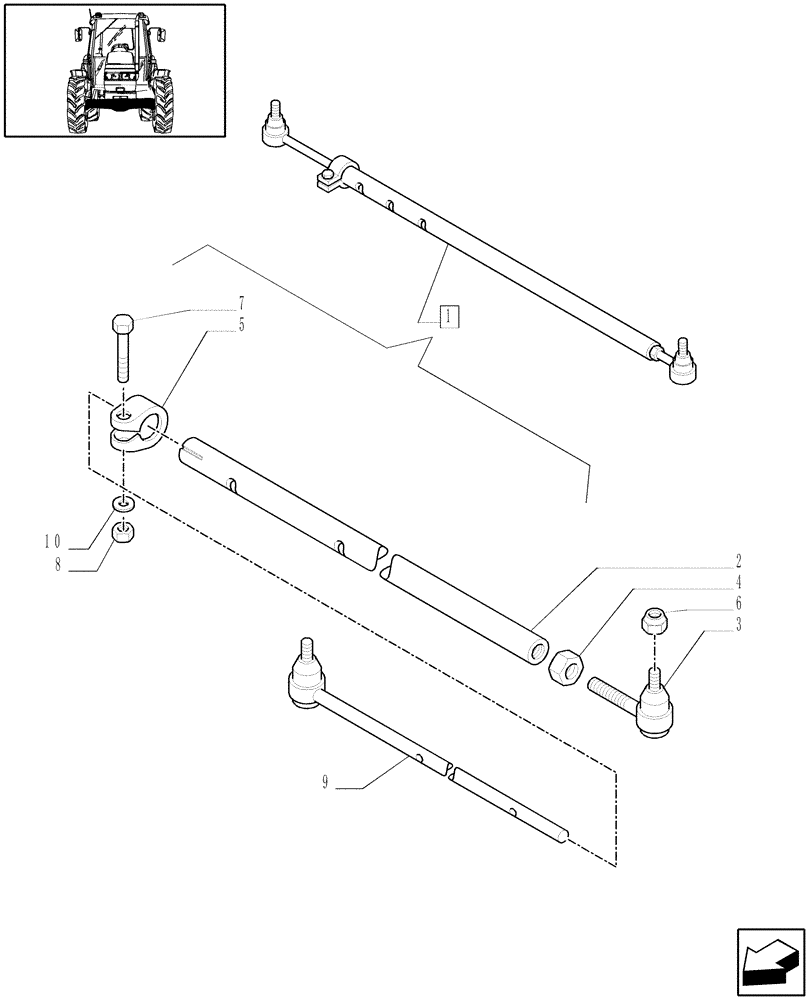

Запчасти Case IH JX90 (1.41.0/01[05]) - 2WD FRONT AXLE - STEERING TIE-ROD - FOR HIGH CLEARANCE VERSION (04) - FRONT AXLE & STEERING

1

5152531

TRACK ROD ASSY

1шт.

2

5152532

TIE-ROD

1шт.

3

5109526

TRACK ROD END

1шт.

4

587302

LOCK NUT,Hex, M20 x 1

1шт.

5

4997704

CLAMP

1шт.

6

12575821

LOCK NUT,M14 x 1.5, Cl 05

2шт.

7

9602206

SCREW,Hex, M10 x 1.25 x 50mm, Cl 8.8

1шт.

8

12164714

NUT,M10 x 1.25, Cl 8

1шт.

9

5152533

TRACK ROD END

1шт.

10

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.
