Запчасти Case IH JX90 (1.40. 8/08[02]) - (VAR.540) CLASS 2 FRONT AXLE WITH 2ND STEERING CYL. (4OKM/H) - POWER STEERING CYLINDER (04) - FRONT AXLE & STEERING

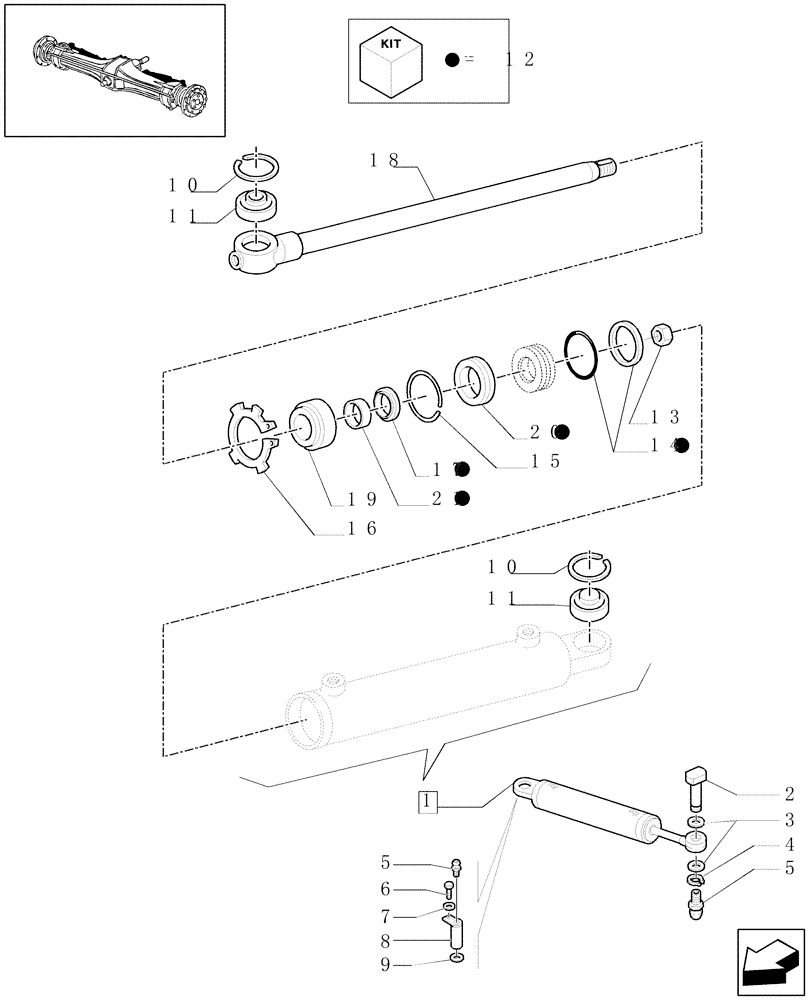

Схема запчастей Case IH JX90 - (1.40. 8/08[02]) - (VAR.540) CLASS 2 FRONT AXLE WITH 2ND STEERING CYL. (4OKM/H) - POWER STEERING CYLINDER (04) - FRONT AXLE & STEERING
19
21
10
18
8
10
5
7
14
12
4
17
11
20
12
2
6
12
12
11
3
1
16
5
12
15
9
13

Артикул

Название

Примечание

Количество

1

5189895

STEERING CYLINDER,Double Acting, 22mm Rod, 202mm Stroke

356MM

2шт.

2

4987671

PIN,30mm OD x 61mm L

2шт.

3

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

4шт.

4

11066876

SNAP RING,M20, Ext

2шт.

5

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

2шт.

5

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

6

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

8

5142048

PIN,19.98mm x 107.00mm

2шт.

9

5142223

SPACER,20.5mm ID x 28mm OD x 16mm L

2шт.

10

5190903

LOCKING RING

4шт.

11

5190901

BUSHING

4шт.

12

5190591

SEAL KIT

2шт.

13

5190904

LOCK NUT

2шт.

14

5190909

SEAL

2шт.

15

5190912

LOCKING RING

2шт.

16

5190907

SNAP RING

2шт.

17

5190911

SEAL

2шт.

18

5190921

THREADED ROD

2шт.

19

5190590

SPOOL

2шт.

20

5190589

RING

2шт.

21

5190549

SCRAPER RING

2шт.

Выбрано товаров: 22
