(1.40. 8/04) - (VAR.540) CLASS 2 FRONT AXLE WITH 2ND STEERING CYL. (4OKM/H) - TIE-ROD

Запчасти Case IH JX90 (1.40. 8/04) - (VAR.540) CLASS 2 FRONT AXLE WITH 2ND STEERING CYL. (4OKM/H) - TIE-ROD (04) - FRONT AXLE & STEERING

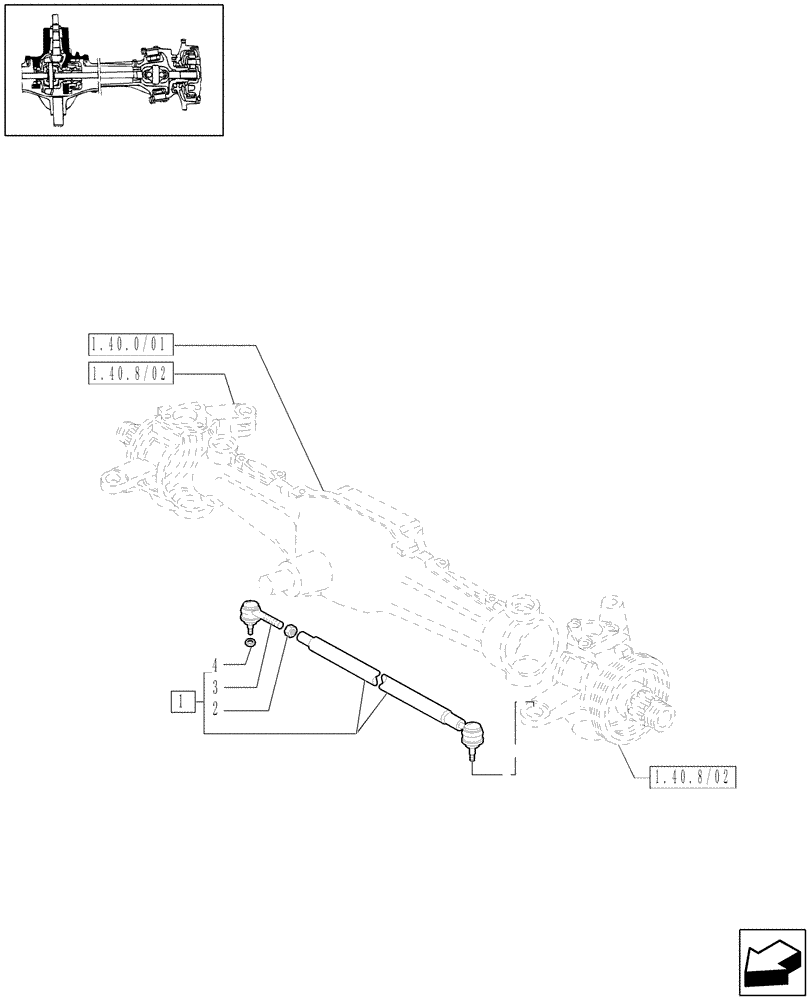

Схема запчастей Case IH JX90 - (1.40. 8/04) - (VAR.540) CLASS 2 FRONT AXLE WITH 2ND STEERING CYL. (4OKM/H) - TIE-ROD (04) - FRONT AXLE & STEERING
4
2
1.40.8/02
1.40.8/02
1.40.0/01
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5143152

TRACK ROD ASSY,M20 x 1 x 1515mm L

1шт.

2

587302

LOCK NUT,Hex, M20 x 1

M20x1

1шт.

3

5109553

BALL JOINT

M16 x M20 Threads

1шт.

4

12575921

NUT,M16 x 1.5, Cl 05

2шт.

Выбрано товаров: 4
