Запчасти Case IH JX90 (1.40. 3/10) - (VAR.319) 12X12 (40KM/H) TRANS. W/INSIDE AXLE FRONT BRAKE AND LIMITED SLIP - DIFF. GEARS AND SHAFT (04) - FRONT AXLE & STEERING

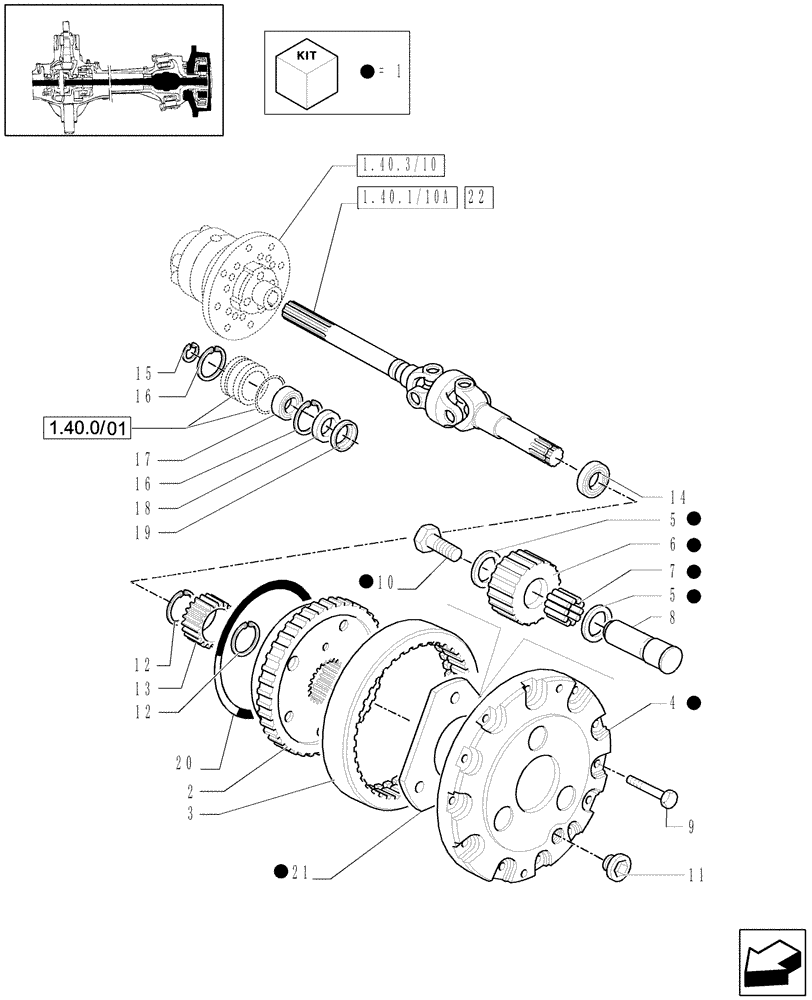

Схема запчастей Case IH JX90 - (1.40. 3/10) - (VAR.319) 12X12 (40KM/H) TRANS. W/INSIDE AXLE FRONT BRAKE AND LIMITED SLIP - DIFF. GEARS AND SHAFT (04) - FRONT AXLE & STEERING
12
12
22
1
2
14
4
1
11
9
3
20
1.40.1/10a
18
19
17
7
13
6
1
5
16
1
1
5
1
15
1
1.40.3/10
8
1
16
10
21

Артикул

Название

Примечание

Количество

1

87303291

CARRIER

ASSY

2шт.

2

5142047

PLANET CARRIER

2шт.

3

5108749

RING GEAR

2шт.

4

87312520

SUPPORT

2шт.

5

5145499

THRUST WASHER,30mm ID x 50mm OD x 0.8mm Thk

12шт.

6

87303252

PLANETARY GEAR

6шт.

7

5145492

ROLLER BEARING,30.3mm ID x 40.3mm OD x 29.8mm W

6шт.

8

87304540

PIN,30.3mm OD x 68mm L

68mm l.

6шт.

9

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.

10

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

11

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

12

5140018

SNAP RING,M30, Ext

4шт.

13

5137107

SUN GEAR

2шт.

14

5133799

SEAL,42mm ID x 62mm OD x 17mm Thk

62 x 42 x 17

2шт.

15

11068376

SNAP RING,M35, Ext x 1.5 Thk

2шт.

16

370012

RING,M62, Internal

4шт.

17

28042470

BALL BEARING,35mm ID x 62mm OD x 14mm W

35 x 62 x 14

2шт.

18

87350856

SEAL,38.4mm ID x 62mm OD x 10mm Thk

40x62x10

2шт.

19

4996762

RETAINER,40.2mm ID x 62mm OD x 6mm L

2шт.

20

4997571

CIRCLIP

2шт.

21

47137794

RING

2шт.

22

5164345

HALF SHAFT

RH, ASSY

1шт.

22

5164342

AXLE-SHAFT, ARTICULA

LH, ASSY

1шт.

Выбрано товаров: 23
