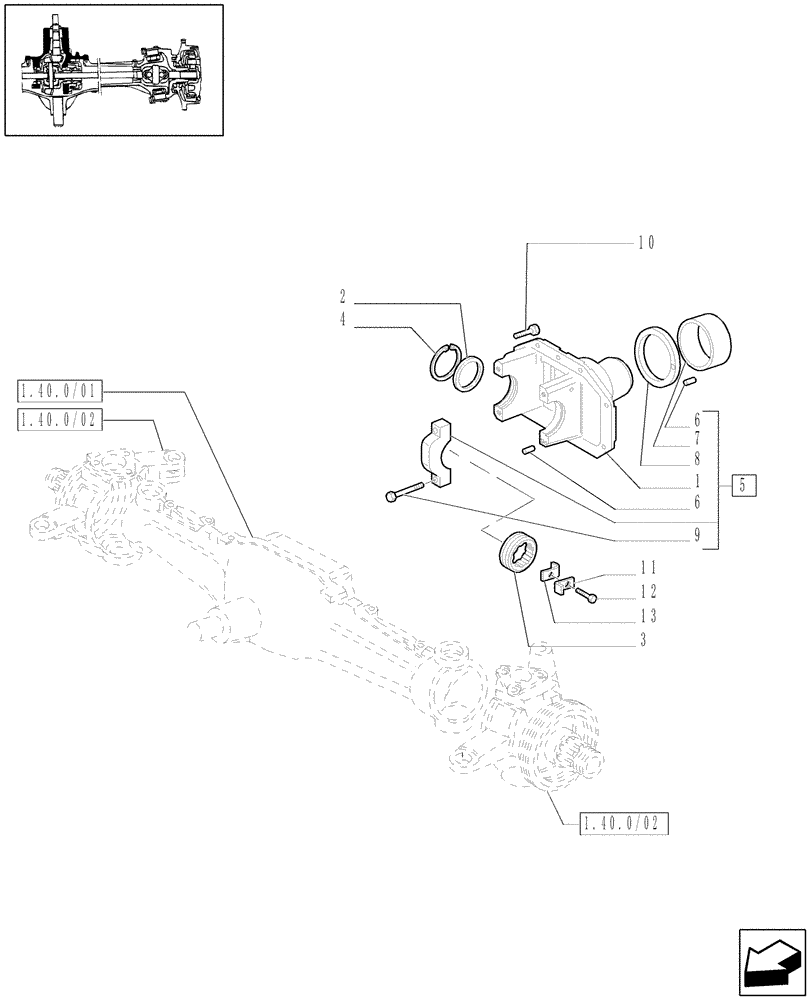

Запчасти Case IH JX90 (1.40. 3/05) - (VAR.319) 12X12 (40KM/H) TRANSMISSION WITH INSIDE AXLE FRONT BRAKE AND LIMITED SLIP - SUPPORT (04) - FRONT AXLE & STEERING

1

5153611

PLATE

1шт.

2

5141460

SHIM,83mm ID x 94.9mm OD x 0.9mm Thk

1шт.

2

5141461

SHIM,83mm ID x 94.9mm OD x 1mm Thk

1шт.

2

5141462

SHIM,83mm ID x 94.9mm OD x 1.1mm Thk

1шт.

2

5141463

SHIM,83mm ID x 94.9mm OD x 1.2mm Thk

1шт.

2

5141464

SHIM,83mm ID x 94.9mm OD x 1.3mm Thk

1шт.

2

5141465

SHIM,83mm ID x 94.9mm OD x 1.4mm Thk

1шт.

2

5141466

SHIM,83mm ID x 94.9mm OD x 1.5mm Thk

1шт.

2

5141467

SHIM,83.00mm ID x 94.50mm OD x 1.60mm T

1шт.

2

5141468

SHIM,83mm ID x 94.9mm OD x 1.7mm Thk

1шт.

2

5141469

SHIM,83mm ID x 94.9mm OD x 1.8mm Thk

1шт.

2

5141470

SHIM,83.00mm ID x 94.50mm OD x 1.90mm T

1шт.

2

5141471

SHIM,83.00mm ID x 94.50mm OD x 2.00mm T

1шт.

3

4996750

RING NUT,M100 x 2

M100

1шт.

4

11062676

SNAP RING,M95, Int

1шт.

5

5153613

SUPPORT

1шт.

6

4966244

PIN,5mm OD x 15mm L

M5 x 15

5шт.

7

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

90 x 99 x 72

1шт.

8

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

90 x 136 x 5

1шт.

9

14275331

LOCK BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

2шт.

9

14276934

BOLT,Hex, M12 x 1.25 x 78mm, Cl 10.9

M12 x 1.25 x 78

2шт.

10

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

10шт.

11

562659

PLATE

1шт.

12

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

13

4996751

PLATE

1шт.
