(1.40.12/08[01]) - (VAR.386) CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER & LIMITED SLIP (40KM/H)- POWER STEER. CYLIN.

Запчасти Case IH JX90 (1.40.12/08[01]) - (VAR.386) CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER & LIMITED SLIP (40KM/H)- POWER STEER. CYLIN. (04) - FRONT AXLE & STEERING

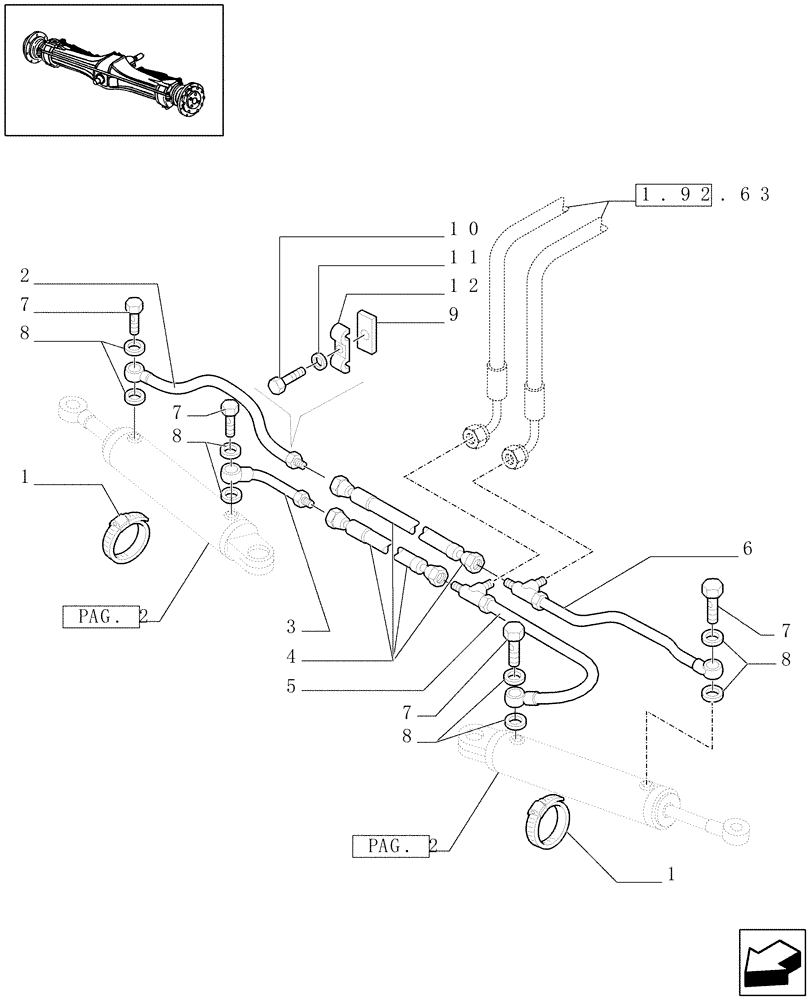

Схема запчастей Case IH JX90 - (1.40.12/08[01]) - (VAR.386) CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER & LIMITED SLIP (40KM/H)- POWER STEER. CYLIN. (04) - FRONT AXLE & STEERING
7
1
11
4
5
12
a
9
a
2
p
2
8
8
g
8
8
1
p
7
.
7
10
g
2
1.92.63
.
3
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

D=50-70

2шт.

2

5139046

HYD TUBE

1шт.

3

5163738

HYD TUBE

1шт.

4

5126537

FLEXIBLE HOSE,8mm ID x 380mm L, SAE 100R2

2шт.

5

87335652

HYD TUBE

1шт.

6

87335657

HYD TUBE

1шт.

7

10184311

BANJO BOLT,M14 x 1.5 x 27mm

M14x1.5

4шт.

8

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

8шт.

9

5138294

SUPPORT

2шт.

10

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

11

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

12

4999554

CLAMP,2 Hoses

2шт.

Выбрано товаров: 12
