(1.40.12/04) - (VAR.386) CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER & LIMITED SLIP (40KM/H) - TIE ROD

Запчасти Case IH JX90 (1.40.12/04) - (VAR.386) CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER & LIMITED SLIP (40KM/H) - TIE ROD (04) - FRONT AXLE & STEERING

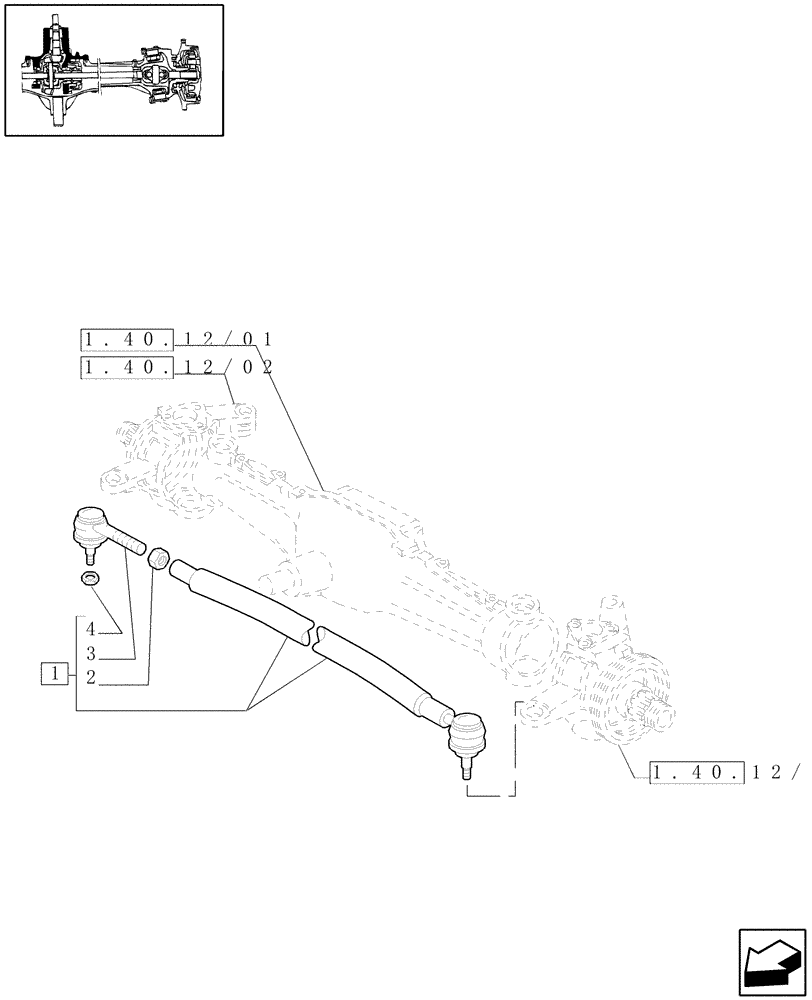

Схема запчастей Case IH JX90 - (1.40.12/04) - (VAR.386) CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER & LIMITED SLIP (40KM/H) - TIE ROD (04) - FRONT AXLE & STEERING
1.40.12/02
1.40.12/02
3
2
1
1.40.12/01
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5168933

TRACK ROD ASSY,30mm ID x 1475mm L

1шт.

2

587302

LOCK NUT,Hex, M20 x 1

M20x1

1шт.

3

5109553

BALL JOINT

M16 x M20 Threads

1шт.

4

12575914

LOCK NUT

2шт.

Выбрано товаров: 4
