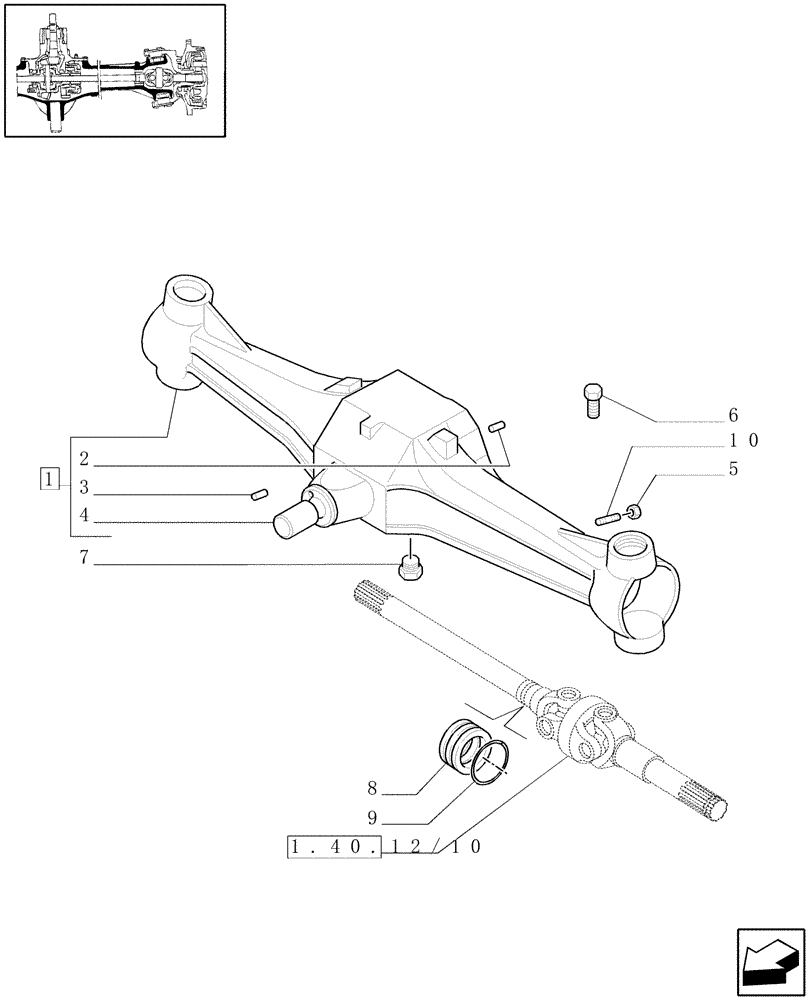

Запчасти Case IH JX90 (1.40.12/01) - (VAR.386) CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER & LIMITED SLIP (40KM/H) - BOX (04) - FRONT AXLE & STEERING

1

87309861

AXLE HOUSING

1шт.

2

4988170

PIN,10mm OD x 20mm L

M10 x 20

2шт.

3

4966244

PIN,5mm OD x 15mm L

M5 x 15

1шт.

4

5140017

PIN,52.65mm OD x 153.00mm

1шт.

5

16101511

NUT,M12 x 1.25, Cl 8

2шт.

6

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

7

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

2шт.

8

87371268

BUSHING,62mm ID x 85mm OD x 43mm L

2шт.

9

4966231

O-RING,2.62mm Thk x 80mm ID, 70 Duro

80 x 2.62

2шт.

10

87309002

SET SCREW

M12X1,25X64

2шт.
