Запчасти Case IH JX90 (1.40.10/02) - 4WD FRONT AXLE - STEERING KNUCKLE - FOR HIGH CLEARANCE VERSION (04) - FRONT AXLE & STEERING

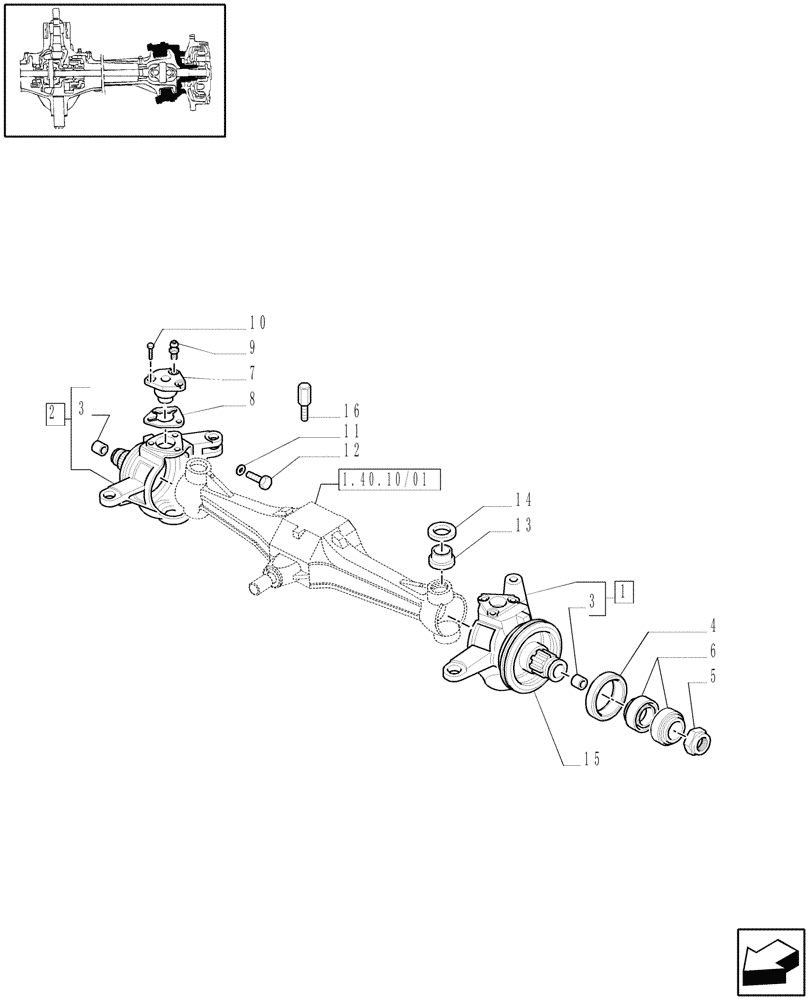

Схема запчастей Case IH JX90 - (1.40.10/02) - 4WD FRONT AXLE - STEERING KNUCKLE - FOR HIGH CLEARANCE VERSION (04) - FRONT AXLE & STEERING
1.40.10/01
11
4
5
2
3
13
1
8
6
9
16
12
3
15
7
14
10

Артикул

Название

Примечание

Количество

1

5142018

STEERING KNUCKLE

LH

1шт.

2

5142019

STEERING KNUCKLE

RH

1шт.

3

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

2шт.

4

5177708

SEAL

2шт.

5

5142020

NUT,Hex, M75 x 2

2шт.

6

47539809

TAPERED BEARING,95mm ID x 135mm OD x 20mm L

4шт.

7

5137239

BALL STUD

BALL PIN

4шт.

8

5087426

SHIM KIT

4шт.

9

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

4шт.

10

14274531

BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9

12шт.

11

5148495

SPACER,10.2mm ID x 22mm OD x 13.5mm L

2шт.

12

5126628

BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9

2шт.

13

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

4шт.

14

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

4шт.

15

5184116

SEAL

165 x 190 x 15.5-17

2шт.

16

5095283

ADJUSTMENT SCREW,M10 x 1.25 x 30mm, FE

2шт.

Выбрано товаров: 16
