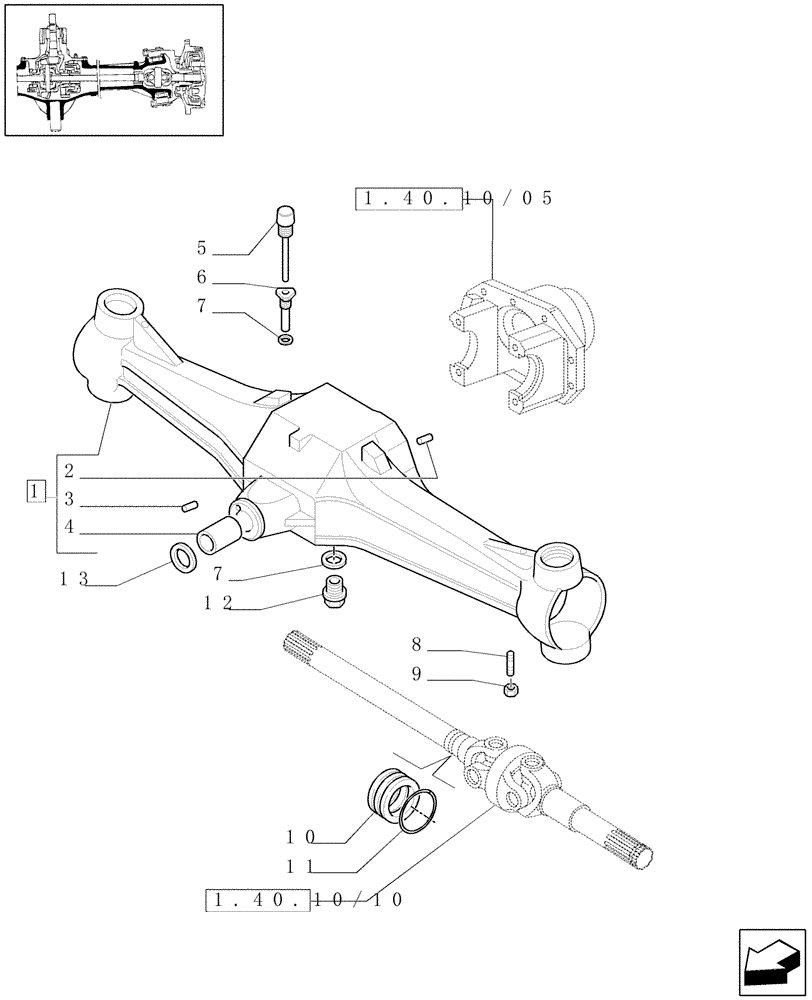

Запчасти Case IH JX90 (1.40.10/01) - 4WD FRONT AXLE - BOX - FOR HIGH CLEARANCE VERSION (04) - FRONT AXLE & STEERING

1

5144524

FRONT AXLE

1шт.

2

4988170

PIN,10mm OD x 20mm L

2шт.

3

4966244

PIN,5mm OD x 15mm L

1шт.

4

5140017

PIN,52.65mm OD x 153.00mm

1шт.

5

5101814

BREATHER

1шт.

6

5153744

BODY,M10 x 1

Breather

1шт.

7

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

3шт.

8

87316865

SET SCREW,M12 x 1.25 x 53mm

2шт.

9

16101524

NUT,M12 x 1.25, Cl 10

2шт.

10

87371268

BUSHING,62mm ID x 85mm OD x 43mm L

2шт.

11

4966231

O-RING,2.62mm Thk x 80mm ID, 70 Duro

2шт.

12

10305171

PLUG,M22 x 1.5 x 21

2шт.

13

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

1шт.
