Запчасти Case IH JX90 (1.40. 0/07[01]) - 4WD FRONT AXLE - DIFFERENTIAL (04) - FRONT AXLE & STEERING

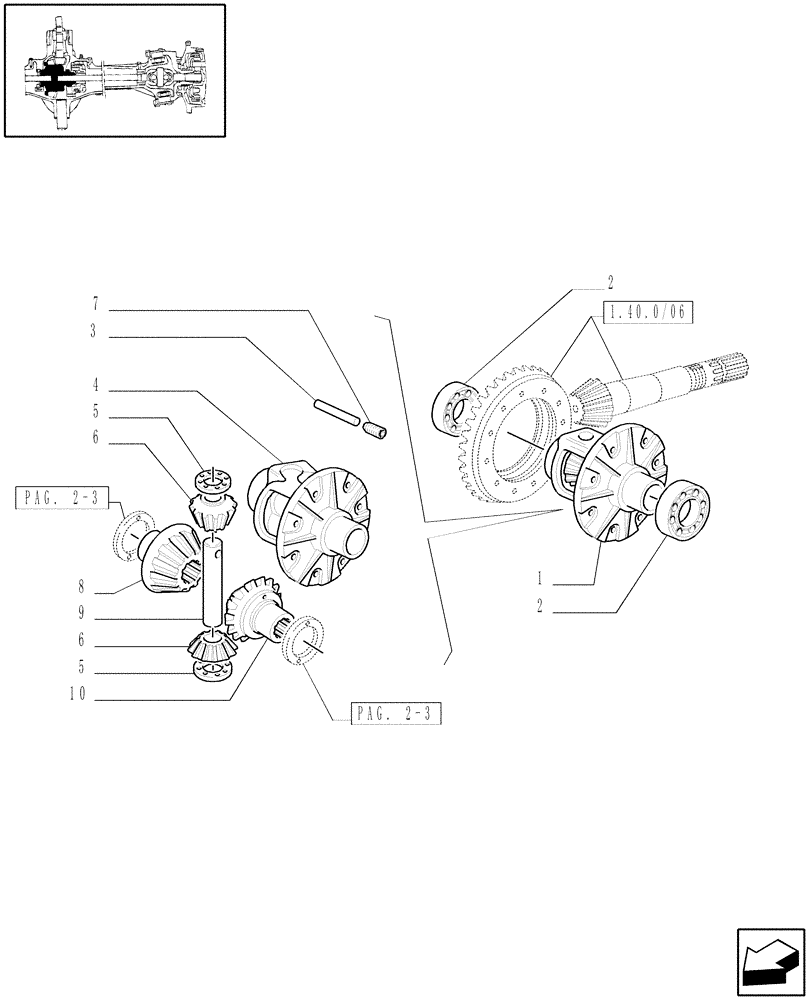

Схема запчастей Case IH JX90 - (1.40. 0/07[01]) - 4WD FRONT AXLE - DIFFERENTIAL (04) - FRONT AXLE & STEERING
8
5
6
3
2
pag. 2-3
6
1.40.0/06
10
5
pag. 2-3
1
7
9
2
4

Артикул

Название

Примечание

Количество

1

5117308

DIFFERENTIAL GEAR

JX60, JX70

1шт.

1

5117219

HOUSING

ASSY, JX80, JX90, JX95

1шт.

2

24903440

TAPERED BEARING,55 mm ID x 90 mm OD x 23 mm

JX60, JX70

2шт.

2

24903450

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

JX80, JX90, JX95

2шт.

3

5173242

ROLL PIN,6.5mm OD x 61mm L

61.5X6.5

1шт.

4

5175029

HOUSING

JX60, JX70

1шт.

4

5174844

HOUSING

JX80, JX90, JX95

1шт.

5

5104408

THRUST WASHER,22mm ID x 45mm OD x 1.5mm Thk

JX60, JX70

2шт.

5

4987975

THRUST WASHER,24mm ID x 48mm OD

JX80, JX90, JX95

2шт.

6

4987111

BEVEL PINION,59.5mm OD, 12T

JX60, JX70

2шт.

6

5103870

PINION,24mm ID, 13T

JX80, JX90, JX95

2шт.

7

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

8

4997733

PLANETARY GEAR

RH, JX60, JX70

1шт.

8

5110716

PLANETARY GEAR

JX80, JX90, JX95

1шт.

9

5103612

PIN,22mm OD x 123mm L

JX60, JX70

1шт.

9

5148935

PIN,24mm OD x 144mm L

JX80, JX90, JX95

1шт.

10

561435

PLANETARY GEAR

LH, JX60, JX70

1шт.

10

5103868

PINION,12/22T

JX80, JX90, JX95

1шт.

Выбрано товаров: 18
